Product Details

Description



Features:

•Built-in low power 12-bit 4 channels D-A converters
•8-bit D-A converter with buffer making full swing between Vcc and GND.
•2 modes(A,B)of channel assignment
•Zero level function
Built-in function of retaining arbitrary assingned data in 12-bit D-A
converter.In normal use,output voltage can be switched to the voltage
corresponding to the formerly assigned data by the setting of
Z01,making it possible to caribrate the data(output voltage value).


Application

•High precision measurement equipments such as memory testers,industrial measurement equipments,medical equipments,standard equipments ingeneral


Pinout

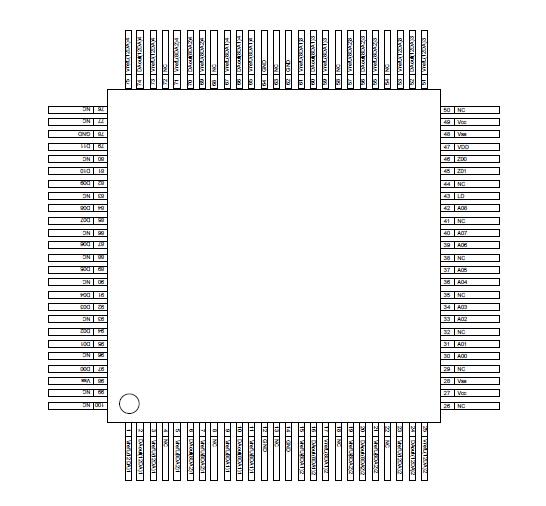

Connection Diagram


Specifications

Symbol Parameter Ratings Unit
VDD Digital supply voltage -0.3 to +7.0 V
VCC Analog supply voltage -0.3 to +7.0 V
VDIN Digital input voltage -0.3 to VDD+0.37.0 V
Vref D/A reference voltage -0.3 to VDD+0.37.0 V
VDAout D/A output voltage -0.3 to VDD+0.37.0 V
topr Operating temperature -20 to +85 °C
tstr Storage temperature -40 to +125 °C



Description

M62382FP is a semiconductor integrated circuit of 5V CMOS structure with 12-bit 4 channels of built-in multiplying D-A converters and 8-bit 8 channels of built-in multiplying D-A converters.8-bit D-A converters,when used in combination with 12-bit D-A converters,can operate in a wider range.Parallel data input under the 2 modes(A,B) of channel assignment allows for easier usage.
