M62301SP

Features: •Separate power supplies for analog section and digital section.•Low power dissipation.....................................2mA(typ)(1mA for A-D conversion and the other 1mA for reset)•Linear error......................................................±0.02%(typ)•Co...

product image

M62301SP Picture
See larger image
SeekIC No. : 004406528 Detail

M62301SP: Features: •Separate power supplies for analog section and digital section.•Low power dissipation.....................................2mA(typ)(1mA for A-D conversion and the other 1mA for...

M62301SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62301SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Separate power supplies for analog section and digital section.
•Low power dissipation.....................................2mA(typ)
  (1mA for A-D conversion and the other 1mA for reset)
•Linear error......................................................±0.02%(typ)
•Conversion time...............................................526s/ch(typ)
•Built-in system reset.........................................4.45V(typ)


Application

High-precision control systems such as temperature control and speed control


Pinout

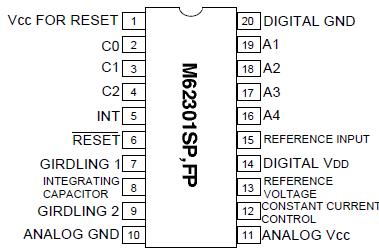

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Unit
Vcc Analog section supply voltage
15
V
VDD Digital section supply voltage
8
V
VID Digital input voltage
-0.3~VDD+0.3
V
VIA Analog input voltage
-0.3~VDD+0.3
V
IOINT INT output current
6
mA
IORE Reset output current
6
mA
VINT INT output withstand voltage
15
V
VRESET Reset output withstand voltage
15
V
VRE Reset supply voltage
6
V
Pd Power dissipation
990(DIP)/660(FP)
mW
K Thermal derating
9.9(DIP)/6.6(FP)
mW/°C
Topr Operating temperature
-20 ~ +75
Tstg Storage temperature
-55 ~ +125



Description

M62301 semiconductor integrated circuit forms an integrating A-D converter,being connected to a microcomputer unit.By using selection signals and counter clock signals from the unit,a 10~12-bit A-D converter can be created at a low cost.

The integration time and resolution can be set at the user's option by changing external parameters.In addition,the built-in circuit offset,delay time and temperature fluctuation are adjustable,enabling a wide range of applications.

M62301 has a 3 input decoder circuit,high-precision reference voltage(1.22V)generator,current supply and comparator for integration,and voltage-monitoring reset circuit for a 5V power supply.It is also equipped with girdling to prevent current leak from integration capacitor.
