M62381FP

Features: •Digital data transfer method 3-wire 12-bit serial data transfer method(DI,CLK,LD)•High pressure proof(VDD±5V)•Short setting time•Built-in reset terminal,all the buffer amplifier outputs forces zero volts.ApplicationSignal gain control of DISPLAY-MONITOR or CTV. C...

product image

M62381FP Picture
See larger image
SeekIC No. : 004406574 Detail

M62381FP: Features: •Digital data transfer method 3-wire 12-bit serial data transfer method(DI,CLK,LD)•High pressure proof(VDD±5V)•Short setting time•Built-in reset terminal,all the bu...

M62381FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62381FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Digital data transfer method 3-wire 12-bit serial data transfer method(DI,CLK,LD)
•High pressure proof(VDD±5V)
•Short setting time
•Built-in reset terminal,all the buffer amplifier outputs forces zero volts.


Application

Signal gain control of DISPLAY-MONITOR or CTV. Conversion from digital control data analog control data for form-use and industrial equipment.

Automatic adjustment by combination with EEPROM and micro-computer. (replacement of conventional half-fixed resistor.)

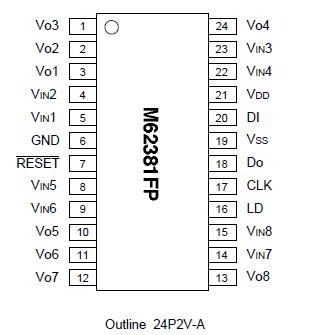

Pinout

Connection Diagram


Specifications

Symbol
Parameter
 conditions
Ratings
Unit
VDD
 Supply voltage
-0.3 to +6.0
V
VIN
 Digital input voltage
-0.3 to +6.0
V
Vss
 Analog negative supply voltage
-6.0 to +3.0
V
VIN
 Input voltage
Vss+0.3 to VDD-0.3
V
Vo
 Output voltage
Vss+0.3 to VDD-0.3
V
Pd
 Power dissipation
150
V
Topr
 Operating temperature
-20 to +85
°C
Tstg
 Storage tempareture
-40 to +125
°C



Description

The M62381FP is an integrated circuit semiconductor of CMOS structure with 8 channels of built-in 8-bit resolution multiplication type D-A converters.

The input data is a easy-to-use 3-wire serial transfer method and it is able to cascading serial use with Do terminal.

The M62381FP is capable of 4 quadrant multiplication because of built-in inverting type amplifier.
