Product Details

Description



Features:

Supply voltage 2.7 to 5.5V
Adopts 4 special ports for each of DAC and I/O and 8 ports that share DAC output and I/O.
Each port can be set by serial data for input/output status.
Built-in power-on reset where D-A output is set to "L" in the initial status and I/O goes to Hi-impedance when    power isturned on.
Small package of 0.65mm pitch and 24 pin.




Application

Adjustment/control of industrial or home-use electronic equipment, such as VCR camera, VCR set, TV, and CRT display.




Pinout

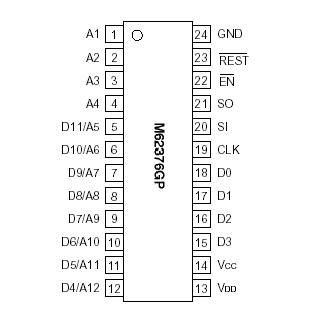

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Digital supply voltage   -0.3 to 7.0 V
VDD Analog supply
(D-A converter upper reference voltage)		   -0.3 to 7.0 V
VIN Input voltage VCC supply side pin -0.3 to VCC+0.3 V
Vout Output Voltage VCC supply side pin -0.3 to VCC+0.3 V
VIN Input voltage VDD supply side pin -0.3 to VDD+0.3 V
Vout Output voltage VDD supply side pin -0.3 to VDD+0.3 V
Pd Power Dissipation   200 mW
Topr Operating Temperature   -20 to +85 °C
Tstg Storage Temperature   -40 to +125 °C



Description

The M62376GP is a semiconductor IC that adopts a CMOS structure having 12-channel of 8-bit D-A converter and 12-bit I/O expander. The IC has achieved a wide operation range of 2.7V to 5.5V in power voltage.

Data is easily available via 3-wire combination system serial input of SI, CLK and EN. The IC also provides an SO pin enabling cascade connection. It provides 8 pins that share D-A converter and I/O ports that can be arbitrarily switched with serial input data.
