M62370GP

Features: •Operable with a low voltage between 2.7~3.6V•16-bit serial data input(connected via 3 pins:DI,CLK,LD)•36 channels built-in of 8-bit D-A converter•6 channels of D-A converters capable of selecting and outputting 4 data stored in each converter,through 2 control te...

product image

M62370GP Picture
See larger image
SeekIC No. : 004406571 Detail

M62370GP: Features: •Operable with a low voltage between 2.7~3.6V•16-bit serial data input(connected via 3 pins:DI,CLK,LD)•36 channels built-in of 8-bit D-A converter•6 channels of D-A...

M62370GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62370GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Operable with a low voltage between 2.7~3.6V
•16-bit serial data input(connected via 3 pins:DI,CLK,LD)
•36 channels built-in of 8-bit D-A converter
•6 channels of D-A converters capable of selecting and outputting 4 data stored in each converter,through 2 control   terminals




Application

Digital-analog conversion in industrial or home-use electronic equipment.

Automatic control in combination with EEPROM and microcomputer(Substitute for conventional semi-fixed resistor)

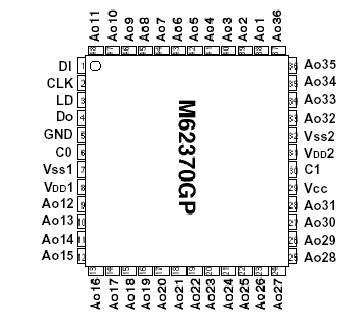

Pinout

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply Voltage -0.3~+7.0 V
VO Output Voltage -0.3~Vcc+0.3 V
Pd Power Dissipation 400 mW
K Terminal derating Ta25°C 4 mW/°C
Topr Operating Temperature -20~+85 °C
Tstg Storage Temperature -40~+125 °C



Description

The M62370GP is a CMOS semiconductor IC,containing 36 channels of 8-bit D-A converters.It is operable with a low supply voltage between 2.7~3.6V,and is easy to use due to serial data input,and 3-pin(DI,CLK,LD)connection with microcomputer.The IC also contains Do pin terminal,enabling cascade connection,and therefore is suitable for automatic control in combination with a microcomputer.
