M62363FP

Features: •Digital data transfer method 3-wire serial data transfer method•D-A converter system Employment of the additional higher-order segment R-2R method doubled precision compared to the convertional R-2R method.•Short setting time•4 Quadrant multiplicationApplicationC...

product image

M62363FP Picture
See larger image
SeekIC No. : 004406566 Detail

M62363FP: Features: •Digital data transfer method 3-wire serial data transfer method•D-A converter system Employment of the additional higher-order segment R-2R method doubled precision compared t...

M62363FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62363FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Digital data transfer method 3-wire serial data transfer method
•D-A converter system Employment of the additional higher-order segment R-2R method doubled precision compared to the convertional R-2R method.
•Short setting time
•4 Quadrant multiplication


Application

Convertion from digital control data to analog control data for home-use and industrial equipment.

Automatic adjustment by combination with EEPROM and microcomputer.(replacement of conventional half-fixed resistor.) Signal gain control of DISPLAY-MONITOR or CTV.

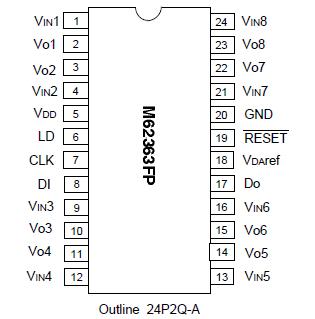

Pinout

Connection Diagram


Specifications

Symbol
Parameter
 conditions
Ratings
Unit
VDD
 Supply voltage
-0.3~+7.0
V
VIND
 Input voltage
-0.3~+7.0
V
VIN
 Input voltage
-0.3~VDD+0.3
V
Vo
 Output current
-0.3~VDD+0.3
V
VDAref
 D-A reference voltage
-0.3~VDD+0.3
V
Topr
 Operating temperature
-20~+75
°C
Tstg
 Storage temperature
-40~+125
°C



Description

The M62363FP is an integrated circuit semiconductor of CMOS structure with 8 channels of buil-in 8-bit multiplication type D-A converters.

The input data is a easy-to-use 3-wire serial method and it is able to cascading serial use with Do terminal.

The M62363FP is suited for use in automatic adjustment combination of microcomputer.
