M62361FP

Features: •Output buffer operational amplifier provided in each channel•15-bit serial data input•6 channels of R-2R and segment type 8-bit DAC•Chip select terminal•Power-on reset functionApplicationDigital-analog conversion in industrial or home-use electric equipment...

product image

M62361FP Picture
See larger image
SeekIC No. : 004406563 Detail

M62361FP: Features: •Output buffer operational amplifier provided in each channel•15-bit serial data input•6 channels of R-2R and segment type 8-bit DAC•Chip select terminal•Powe...

M62361FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62361FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Output buffer operational amplifier provided in each channel
•15-bit serial data input
•6 channels of R-2R and segment type 8-bit DAC
•Chip select terminal
•Power-on reset function


Application

Digital-analog conversion in industrial or home-use electric equipment.

Automatic control in combination with EEROM and microcomputer(Substitute for conventional semi-fixed resistor) Signal gain setting of display monitor and CTV.




Pinout

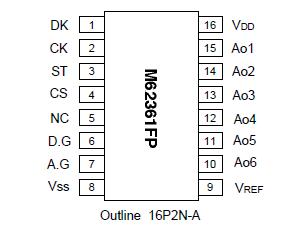

Connection Diagram


Specifications

Symbol
Parameter
 conditions
Ratings
Unit
VDD
 Supply voltage
-0.3~+15
V
VREF
 Reference voltage
-0.3~+8
V
VIN
 Input voltage
-0.3~VDD
V
Ao
 Output current
-0.3~VDD
V
Pd
 Power dissipation
550
mW
K
 Thermal derating
5.5
 mW/°C
Topr
 Operating temperature
-20~+85
°C
Tstg
 Storage temperature
-55~+125
°C



Description

The M62361FP is a Bi-CMOS semiconductor IC,containing 6 channels of 8-bit D-A converters(DAC),with a buffer operational amplifier provided in the output of each channel.It is easy to use due to serial data input, and three-pin(DT,CK,ST)connection with microcomputer.

This M62361FP IC is designed to be operable when chip select data contained in the 15-bit data conforms to the state of the CS terminal.Accordingly,the IC can process data by strobe signals common with other devices connected to the bus of microcomputer, and does not involve an microcomputer port to drive the IC.The inputs are connected to a level shift circuit so that the input threshold level does not depend on supply voltage.The IC also contains an initialization function to reset output(0 scale)when power is turned ON or drops.
