Product Details

Description

Features:

•12bit serial data input(3-wire serial data transfer method)
•Highly stable output buffer operational amplifier allow operation in the all voltage range from power supply to ground.

Application

Adjustment/control of industrial or home-use electronic equipment,such as VTR camera,VTR set,TV,and CRT display.

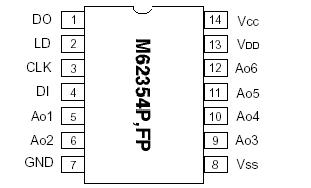

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
Vcc	Supply voltage		-0.3~7.0	V
V_DD	D-A converter upper reference voltage		-0.3~7.0	V
V_IN	Input voltage		-0.3~Vcc+0.3	V
Vo	Output Voltage		-0.3~Vcc+0.3	V
P_d	Power dissipation		440(P)/250(FP)/150(GP)	mV
T_opr	Operating Temperature		20~+85	°C
Tstg	Storage Temperature		-55~+125	°C

Description

The M62354 is an integrated circuit semiconductor of CMOS structure with 6 channels of built-in D-A converters with output buffer operational amplifiers.

The 3-wire serial interface method is used for the transfer format mum wiring.

The M62354 is able to cascading serial use with Do terminal.

The output buffer operational amplifier operates in the whole voltage range from power supply to ground for both input/output.
