M56694FP

Features: `Serial input-serial/parallel output`Cascade connections possible through serial output`Latch circuit included for each stage`Driver section supply voltage: VH=120V`Operating temperature: -20 75°CApplicationVacuum Fluorescent Display ANODE DRIVERPinoutSpecifications Symbol Par...

product image

M56694FP Picture
See larger image
SeekIC No. : 004406008 Detail

M56694FP: Features: `Serial input-serial/parallel output`Cascade connections possible through serial output`Latch circuit included for each stage`Driver section supply voltage: VH=120V`Operating temperature: ...

M56694FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M56694FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 `Serial input-serial/parallel output
 `Cascade connections possible through serial output
 `Latch circuit included for each stage
 `Driver section supply voltage: VH=120V
 `Operating temperature: -20 75°C


Application

Vacuum Fluorescent Display ANODE DRIVER

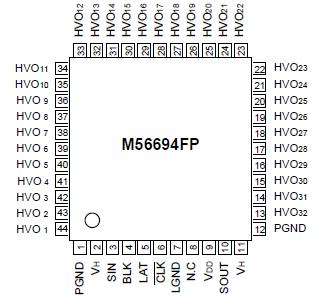

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VDD Logic stage supply voltage
-0.3to+7
V
VH Output stage supply voltage
-0.3to+120
V
VI Logic inputs voltage
-0.3toVDD+0.3
V
VO Logic outputs voltage Data output
-0.3toVDD+0.3
V
VHVO Outputs voltage High supply voltage output pin
-0.3toVH
V
Pd Power dissipation range Ta 25°C
940
mW
Tstg Storage temperature range
-55to+150



Description

The M56694 is a semiconductor integrated circuit that has a builtin,32-bit shift register and a latch of CMOS structure with serial input and serial/parallel output, and a 32-bit totem-pole-type parallel output driver of high pressure proof DMOS structure.

Employed are Bi-CMOS and high pressure proof DMOS processing technology.
