Features:

` Serial input - serial/parallel output
` Bidirectional shift register (controlled at F/R terminal)
` Cascade connections possible through serial output.
` Latch circuit included for each stage.
` Driver supply voltage: V_H=90V
` Operating temperature: -40 85°C

Application

Vacuum Fluorescent Display GRID DRIVER

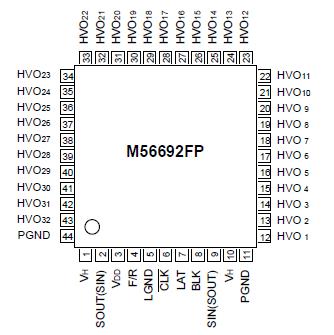

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Rating	Unit
VD_D	Logic stage supply voltage		-0.3to+7	V
V_H	Output stage supply voltage		-0.3to90	V
V_I	Logic inputs voltage		0.3 toV_DD+0.3	V
Vo	Logic output voltage	Data output	0.3 toV_DD+0.3	V
V_HVO	Output voltage	High supply voltage output pin	-0.3toV_H	V
Pd	Power dissipation	Ta 25°C	850	mW

Description

The M56692FP is a semiconductor integrated circuit that has a built-in, 32-bit shift register and a latch of CMOS structure with serial input and serial/parallel output, and a 32-bit totem-pole-type parallel output driver of high pressure proof DMOS structure.

Employed are Bi-CMOS and high pressure proof DMOS processing technology.
