M35501FP

Features: `Digit output ............................................................. 16 (maximum) •Up to 16 pins can be selected •More digits available by connecting additional M35501FPs •Output structure: high-breakdown voltage, P-channel opendrain; built-in pull-down resistor...

product image

M35501FP Picture
See larger image
SeekIC No. : 004404806 Detail

M35501FP: Features: `Digit output ............................................................. 16 (maximum) •Up to 16 pins can be selected •More digits available by connecting additional M35501FP...

M35501FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M35501FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Digit output ............................................................. 16 (maximum)
   •Up to 16 pins can be selected
   •More digits available by connecting additional M35501FPs
   •Output structure: high-breakdown voltage, P-channel opendrain;
    built-in pull-down resistor between digit output pins and VEE pin
`Power-on reset circuit ........................................................ Built-in
`Power source voltage ................................................  4.0 to 5.5 V
`Pull-down power source voltage ................................   Vcc 43 V
`Operating temperature range ..................................  20 to 85
`Package .............................................................................  24P2E
`Power dissipation ...............   250mW (at 100 kHz operation clock)


Pinout

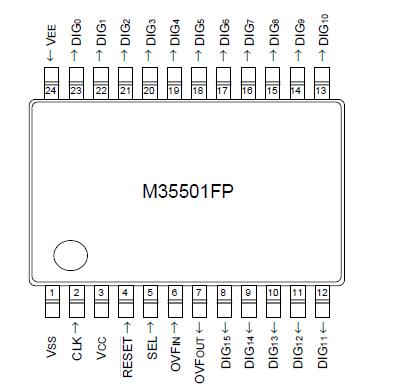

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC Power source voltage • All voltage are based on VS•Output transistors are off.
0.3 to 7.0
V
VEE Pull-down power source voltage
VCC45 to VCC+0.3
V
VI Input voltage CLK, SEL, OVFIN
0.3 to VCC+0.3
V
VI Input voltage RESET
0.3 to VCC+0.3
V
VO Output voltage DIG0DIG15
VCC45 to VCC+0.3
V
VCC50 to VCC+0.3
V
VO Output voltage OVFOUT
0.3 to VCC+0.3
V
Pd Power dissipation Ta = 25
250
mW
Topr Operating temperature
20 to 85
Tstg Storage temperature
40 to 125



Description

The M35501FP generates digit signals for fluorescent display hen connected to the output port of a microcomputer. There are p to 16 digit pins available, and more can be added by connecting dditional M35501FPs. The number of fluorescent displays an be increased easily by connecting the M35501FP to the MOS FLD (VFD; Vacuum Fluorescent Display) output pins of an -bit microcomputer in MITSUBISHI's 38B5 Group. The 35501FP is suitable for fluorescent display control on household lectric appliances, audio products, etc.
