M29W641DL

Features: ` SUPPLY VOLTAGE VCC = 2.7V to 3.6V Core Power Supply VCCQ = 1.8V to 3.6V for Input/Output VPP =12 V for Fast Program (optional)` ACCESS TIME: 70, 90, 100 and 120ns` PROGRAMMING TIME 10 s typical Double Word Program option` 128 UNIFORM, 32-KWord MEMORY BLOCKS` PROGRAM/ERASE CONTROLLER Em...

product image

M29W641DL Picture
See larger image
SeekIC No. : 004404462 Detail

M29W641DL: Features: ` SUPPLY VOLTAGE VCC = 2.7V to 3.6V Core Power Supply VCCQ = 1.8V to 3.6V for Input/Output VPP =12 V for Fast Program (optional)` ACCESS TIME: 70, 90, 100 and 120ns` PROGRAMMING TIME 10 s ...

M29W641DL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M29W641DL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` SUPPLY VOLTAGE
VCC = 2.7V to 3.6V Core Power Supply
VCCQ = 1.8V to 3.6V for Input/Output
VPP =12 V for Fast Program (optional)
` ACCESS TIME: 70, 90, 100 and 120ns
` PROGRAMMING TIME
10 s typical
Double Word Program option
` 128 UNIFORM, 32-KWord MEMORY BLOCKS
` PROGRAM/ERASE CONTROLLER
Embedded Program and Erase algorithms
` ERASE SUSPEND and RESUME MODES
Read and Program another Block during Erase Suspend
` UNLOCK BYPASS PROGRAM COMMAND
Faster Production/Batch Programming
` WRITE PROTECT OPTIONS
M29W641DH: WP Pin for Write Protection of Highest Address Block
M29W641DL: WP Pin for Write Protection of Lowest Address Block
M29W641DU: No Write Protection
` TEMPORARY BLOCK UNPROTECTION MODE
` COMMON FLASH INTERFACE
` EXTENDED MEMORY BLOCK
Extra block used as security block or to store additional information
` LOW POWER CONSUMPTION
Standby and Automatic Standby
` ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Device Code M29W641D: 22C7h


Pinout

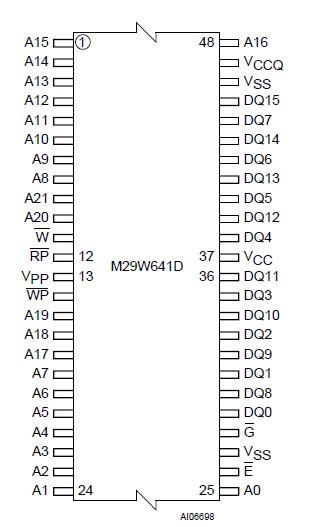

Connection Diagram


Specifications

Symbol
Parameter
Min
Max
Unit
TBIAS
 Temperature Under Bias
50
125
°C
TSTG
 Storage Temperature
65
150
°C
VCCQ
 Input/Output Supply Voltage (1,2)
0.6
4
V
VCC
 Supply Voltage
0.6
4
V
VID
 Identification Voltage
0.6
13.5
V
VPP(3)
 Program Voltage
0.6
13.5
V

Note: 1. Minimum voltage may undershoot to 2V during transition and for less than 20ns during transitions.
2. Maximum voltage may overshoot to VCC +2V during transition and for less than 20ns during transitions.
3. VPP must not remain at 12V for more than a total of 80hrs.


Description

Stressing the M29W641DL above the rating listed in the Absolute Maximum Ratings table may cause permanent damage to the device. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. These are stress ratings only and operation of the M29W641DL at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
