PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature (Temperature Range Option 1) 0 to 70 °C Ambient Operating Temperature (Temperature Range Option 6) 40 to 85 °C Ambient Operating Temperature (Temperature Range Option 3) 40 to 1...
M29F100BB: PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature (Temperature Range Option 1) 0 to 70 °C Ambient Operating Temperature (Temperature Ra...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Value |
Unit |
TA |
Ambient Operating Temperature (Temperature Range Option 1) |
0 to 70 |
°C |
Ambient Operating Temperature (Temperature Range Option 6) | 40 to 85 |
°C | |
Ambient Operating Temperature (Temperature Range Option 3) | 40 to 125 |
°C | |
TBIAS |
Temperature Under Bias |
50 to 125 |
°C |
TSTG |
Storage Temperature |
65 to 150 |
°C |
VIO(2) |
Input or Output Voltages |
0.6 to 5 |
V |
VCC |
Supply Voltage |
0.6 to 5 |
V |
VID |
Identification Voltage |
0.6 to 13.5 |
V |
The M29F100BB is a 1 Mbit (128Kb x8 or 64Kb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F100B is fully backward compatible with the M29F100.
The memory M29F100BB is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. Each block can be protected independently to prevent accidental Program or Erase commands from modifying the memory. Program and Erase commands are written to the Command Interface of the memory. An on-chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents. The end of a program or erase operation can be detected and any error conditions dentified. The command set required to control the memory is consistent with JEDEC standards.
The blocks M29F100BB in the memory are asymmetrically arranged, see Tables 3 and 4, Block Addresses. The first or last 64 Kbytes have been divided into four additional blocks. The 16 Kbyte Boot Block can be used for small initialization code to start the microprocessor, the two 8 Kbyte Parameter Blocks can be used for parameter storage and the remaining 32K is a small Main Block where the application may be stored.
Chip Enable, Output Enable and Write Enable signals control the bus operation of the memory. They allow simple connection to most microprocessors, often without additional logic.

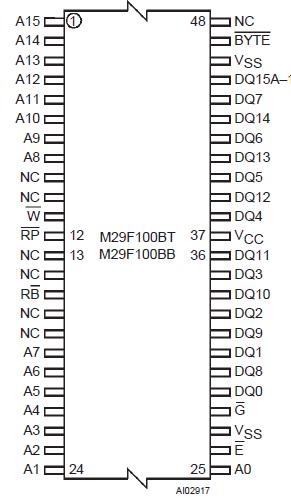

The memory M29F100BB is offered in TSOP48 (12 x 20mm) and SO44 packages and it is supplied with all the bits erased (set to '1').
