M28F410

Features: `DUAL x8 and x16 ORGANIZATION`SMALL SIZE PLASTIC PACKAGESTSOP56 and SO44`MEMORY ERASE in BLOCKS One 16K Byte or 8K Word Boot Block (top or bottom location) with hardware write and erase protection Two 8K Byte or 4K Word Key Parameter Blocks One 96K Byte or 48K Word Main Block Three 1...

product image

M28F410 Picture
See larger image
SeekIC No. : 004404298 Detail

M28F410: Features: `DUAL x8 and x16 ORGANIZATION`SMALL SIZE PLASTIC PACKAGESTSOP56 and SO44`MEMORY ERASE in BLOCKS One 16K Byte or 8K Word Boot Block (top or bottom location) with hardware write and erase p...

M28F410 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M28F410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`DUAL x8 and x16 ORGANIZATION
`SMALL SIZE PLASTIC PACKAGESTSOP56 and SO44
`MEMORY ERASE in BLOCKS
   One 16K Byte or 8K Word Boot Block (top or bottom location) with hardware write and erase protection
   Two 8K Byte or 4K Word Key Parameter Blocks
   One 96K Byte or 48K Word Main Block
   Three 128K Byte or 64K Word Main Blocks
`5V ± 10% SUPPLYVOLTAGE
`12V ± 5% PROGRAMMING VOLTAGE
`100,000 PROGRAM/ERASE CYCLES
`PROGRAM/ERASE CONTROLLER
`AUTOMATIC STATICMODE
`LOW POWER CONSUMPTION
   60A Typical in Standby
   0.2A Typical in Deep Power Down
   20/25mATypical Operating Consumption (Byte/Word)
`HIGH SPEED ACCESS TIME: 70ns
`EXTENDEDTEMPERATURE RANGES


Pinout

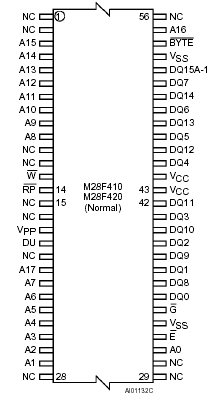

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature
grade 1
grade 3
grade 6
0 to 70
40 to 125
40 to 85
TBIAS
 Temperature Under Bias
50 to 125
TSTG
 Storage Temperature
65 to 150
VIO(2,3)
 Input or Output Voltage
0.6 to 7
V
VCC
 Supply Voltage
0.6 to 7
V
VA9(2)
 A9 Voltage
0.6 to 13.5
V
VPP(2)
 Program Supply Voltage, during Erase
or Programming
0.6 to 14
V
VPP(2)
 RP Voltage
0.6 to 13.5
V

Notes: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "
               Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings
              only and operation of the device at these or any other conditions above those indicated in the
              Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions
              for extended periods may affect device reliability. Refer also to the SGS-THOMSON SURE Program and other
              relevant quality documents.
         2. Minimum Voltage may undershoot to 2V during transition and for less than 20ns.
         3. Maximum DC voltage on I/O is VCC + 0.5V, overshoot to 7V allowed for less than 20ns.




Description

The M28F410 and M28F420 FLASH MEMORIES are non-volatile memories that may be erased electrically at the block level and programmed by byte or word. The interface is directly compatible with most microprocessors. SO44 and TSOP56 packages are used.
