M28F201

PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature 40 to 125 °C TBIAS Temperature Under Bias 65 to 150 °C TSTG Storage Temperature 65 to 150 °C VIO Input or Output Voltages 0.6 to 7 V VCC Supply...

product image

M28F201 Picture
See larger image
SeekIC No. : 004404296 Detail

M28F201: PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature 40 to 125 °C TBIAS Temperature Under Bias 65 to 150 °C TSTG Storage ...

M28F201 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M28F201
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

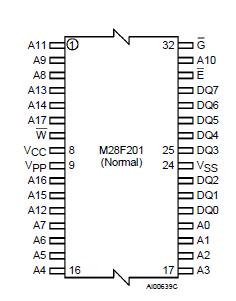

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature
40 to 125
°C
TBIAS
 Temperature Under Bias
65 to 150
°C
TSTG
 Storage Temperature
65 to 150
°C
VIO
 Input or Output Voltages
0.6 to 7
V
VCC
 Supply Voltage
0.6 to 7
V
VA9
 A9 Voltage
0.6 to 13.5
V
VPP
 Program Supply Voltage, during Erase or Programming
0.6 to 14
V



Description

The M28F201 FLASH Memory product is a nonvolatilememories which may be erased electrically at the chip level and programmed byte-by-byte. It is organised as 256K bytes. It uses a command register architecture to select the operating modes and thus provide a simple microprocessor interface. The M28F201 FLASH Memory product is suitable for applications where the memory has to be reprogrammed in the equipment. The access time of 70ns makes the device suitable for use in high speed microprocessor systems.
