Features:

64Mbit of Flash Memory
Page Program (up to 256 Bytes) in 1.4ms (typical)
Sector Erase (512Kbit)
Bulk Erase (64Mbit)
2.7 to 3.6V Single Supply Voltage
SPI Bus Compatible Serial Interface
50MHz Clock Rate (maximum)
Electronic Signatures
   JEDEC Standard Two-Byte Signature (2017h)
   RES Instruction, One-Byte, Signature (16h), for backward compatibility
More than 100000 Erase/Program Cycles per Sector
More than 20-Year Data Retention


Pinout

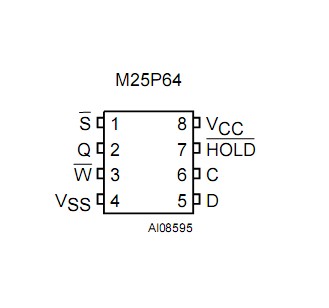

Connection Diagram

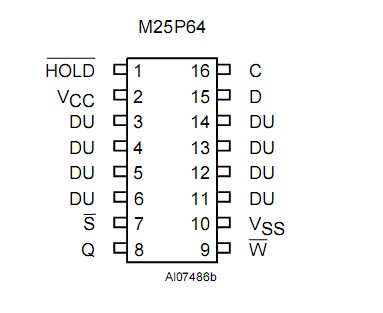

Connection Diagram




Specifications

Symbol
Parameter
Min.
Max.
Unit
TSTG
Storage Temperature
65
150
°C
TLEAD
Lead Temperature during Soldering
See note(1)
°C
VIO
Input and Output Voltage (with respect to Ground)
0.5
4.0
V
VCC
Supply Voltage
0.2
4.0
V
VESD
Electrostatic Discharge Voltage (Human Body model) 2
2000
2000
V



Note:
1.Compliant with JEDEC Std J-STD-020C (for small body, Sn-Pb or Pb assembly), the ST ECOPACK ®7191395 specification, and the European directive on Restrictions on Hazardous Substances (RoHS) 2002/95/EU
2.JEDEC Std JESD22-A114A (C1=100pF, R1=1500 Ω, R2=500 Ω)




Description

The M25P64 is a 64Mbit (8M x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The memory M25P64 is organized as 128 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 32768 pages, or 8388608 bytes.

The whole memory M25P64 can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.
