M2023TJW01-FG-4A-FF

Rocker Switches & Paddle Switches ON-OFF-ON DPDT 6A 125VAC GREEN

product image

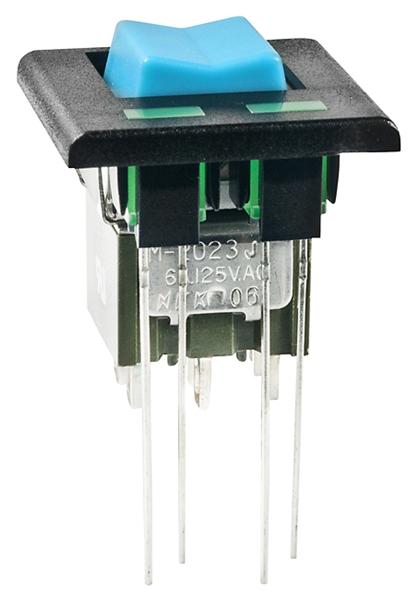

M2023TJW01-FG-4A-FF Picture
See larger image
SeekIC No. : 002626677 Detail

M2023TJW01-FG-4A-FF: Rocker Switches & Paddle Switches ON-OFF-ON DPDT 6A 125VAC GREEN

M2023TJW01-FG-4A-FF Data Sheet

floor Price/Ceiling Price

US $ 5.19~5.93 / Piece | Get Latest Price
Part Number:
M2023TJW01-FG-4A-FF
Mfg:
NKK Switches
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~50
  • 50~100
  • Unit Price
  • $5.93
  • $5.65
  • $5.48
  • $5.19
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Contact Form : DPDT Switch Function : ON - OFF - ON
Current Rating : 6 A Voltage Rating AC : 250 V
Termination Style : Solder Lug Actuator : Rocker
Color : Blue Mounting Style : PCB
Terminal Seal : Epoxy Contact Plating : Silver
Illumination : Not Illuminated

Description

Voltage Rating DC :
Power Rating :
Illumination Color :
Actuator : Rocker
Terminal Seal : Epoxy
Contact Form : DPDT
Contact Plating : Silver
Illumination : Not Illuminated
Voltage Rating AC : 250 V
Termination Style : Solder Lug
Current Rating : 6 A
Mounting Style : PCB
Switch Function : ON - OFF - ON
Color : Blue


Parameters:

Technical/Catalog InformationM2023TJW01-FG-4A-FF
VendorNKK Switches of America Inc
CategorySwitches
Mounting TypePanel Mount, Snap-In
CircuitDPDT
Switch FunctionOn-Off-On
Contact Rating @ Voltage6A @ 125VAC
IlluminationIlluminated
Illumination Type, ColorLED, Green
Illumination Voltage2.1 VDC
Termination StyleSolder Lug
Panel Cutout Dimensions15.90mm x 13.10mm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names M2023TJW01 FG 4A FF
M2023TJW01FG4AFF
