M2021

Features: · Integrated SAW (surface acoustic wave) delay line; low phase jitter of < 0.5ps rms, typical (12kHz to 20MHz or 50kHz to 80MHz)· Output frequencies of 15 to 700 MHz *· LVPECL clock output (CML and LVDS options available)· Reference clock inputs support differential LVDS, LVPECL, as w...

product image

M2021 Picture
See larger image
SeekIC No. : 004404071 Detail

M2021: Features: · Integrated SAW (surface acoustic wave) delay line; low phase jitter of < 0.5ps rms, typical (12kHz to 20MHz or 50kHz to 80MHz)· Output frequencies of 15 to 700 MHz *· LVPECL clock out...

M2021 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M2021
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated SAW (surface acoustic wave) delay line; low phase jitter of < 0.5ps rms, typical (12kHz to 20MHz or 50kHz to 80MHz)
· Output frequencies of 15 to 700 MHz *
· LVPECL clock output (CML and LVDS options available)
· Reference clock inputs support differential LVDS, LVPECL, as well as single-ended LVCMOS, LVTTL
· Loss of Lock (LOL) output pin
· Narrow Bandwidth control input (NBW pin)
· Hitless Switching (HS) options with or without Phase Build-out (PBO) available for SONET (GR-253) / SDH (G.813) MTIE and TDEV compliance during reference clock reselection
· Industrial temperature grade available
· Single 3.3V power supply
· Small 9 x 9 mm SMT (surface mount) package


Pinout

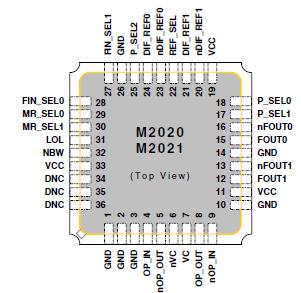

Connection Diagram


Specifications


Symbol
Parameter
Rating
Unit
VI Inputs
-0.5 to VCC +0.5
V
VO Outputs
-0.5 to VCC +0.5
V
VCC Power Supply Voltage
4.6
V
TS Storage Temperature
-45 to +100

Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond those listed in Recommended Conditions of Operation, DC Characteristics, or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.



Description

The M2020/21 is a VCSO (Voltage Controlled SAW Oscillator) based clock jitter attenuator PLL designed for clock jitter attenuation and frequency translation. The device is ideal for generating the transmit reference clock for optical network systems supporting 2.5-10 GB data rates. It can serve to jitter attenuate a stratum reference clock or a recovered clock in loop timing mode. The M2020/21 module includes a proprietary SAW (surface acoustic wave) delay line as part of the VCSO. This results in a high frequency, high-Q, low phase noise oscillator that assures low intrinsic output jitter.
