M2023LL3W01

Toggle Switches ON-OFF-ON LCKNG LVR SPLPRF BUSHING SOLDR

product image

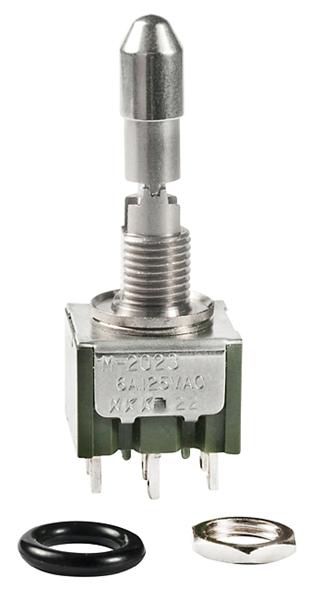

M2023LL3W01 Picture
See larger image
SeekIC No. : 002664035 Detail

M2023LL3W01: Toggle Switches ON-OFF-ON LCKNG LVR SPLPRF BUSHING SOLDR

M2023LL3W01 Data Sheet

floor Price/Ceiling Price

US $ 3.9~4.37 / Piece | Get Latest Price
Part Number:
M2023LL3W01
Mfg:
NKK Switches
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~50
  • 50~100
  • Unit Price
  • $4.37
  • $4.14
  • $4.02
  • $3.9
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Contact Form : DPDT Switch Function : ON - OFF - ON
Current Rating : 6 A Voltage Rating AC : 125 V, 250 V
Voltage Rating DC : 30 V Termination Style : Solder Lug
Mounting Style : PCB Terminal Seal : Epoxy
Contact Plating : Silver Illumination : Not Illuminated

Description

Power Rating :
Terminal Seal : Epoxy
Contact Plating : Silver
Illumination : Not Illuminated
Termination Style : Solder Lug
Switch Function : ON - OFF - ON
Contact Form : DPDT
Mounting Style : PCB
Current Rating : 6 A
Voltage Rating DC : 30 V
Voltage Rating AC : 125 V, 250 V


Parameters:

Technical/Catalog InformationM2023LL3W01
VendorNKK Switches of America Inc
CategorySwitches
CircuitDPDT
Switch FunctionOn-Off-On
Mounting TypePanel Mount
Actuator Length5.100mm
Actuator TypeLocking Lever
Bushing Thread1/4-40
Contact Rating @ Voltage6A @ 125VAC
IlluminationNon-Illuminated
Termination StyleSolder Lug
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names M2023LL3W01
M2023LL3W01
