M2022LL3G03, US $ 3.47-4.6 , NKK Switches, M2022LL3G03 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002664291 Detail

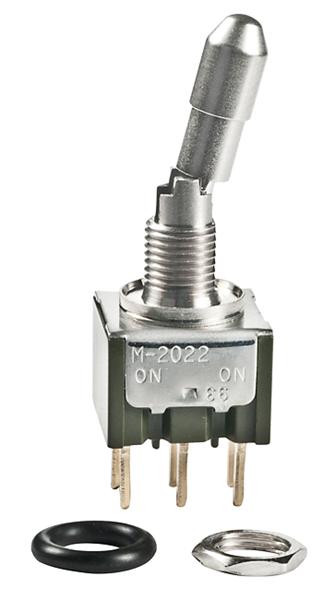

M2022LL3G03: Toggle Switches ON-ON LOCKING LEVER SPLPRF BUSHING PC

M2022LL3G03 Data Sheet

US $ 3.47~4.6 / Piece | Get Latest Price

Part Number:: M2022LL3G03
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$4.6
$4.04
$3.95
$3.47

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

M2020 evaluate
Features: · Integrated SAW (surface acoustic wave) delay line; low phase jitter of < 0.5ps rms,...
M2021 evaluate
Features: · Integrated SAW (surface acoustic wave) delay line; low phase jitter of < 0.5ps rms,...
M2021BB1W01 evaluate
US $2.32 - 4.29 / Piece

SW TOGGLE DPST THR SILV SLD LUG

Product Details

Quick Details

Contact Form :	DPDT	Switch Function :	ON - NONE - ON
Current Rating :	0.1 A	Voltage Rating AC :	28 V
Voltage Rating DC :	28 V	Power Rating :	0.4 Volt-Amp
Termination Style :	Through Hole	Mounting Style :	Wire
Terminal Seal :	Epoxy	Contact Plating :	Gold
Illumination :	Not Illuminated

Description

Voltage Rating DC : 28 V
Terminal Seal : Epoxy
Illumination : Not Illuminated
Switch Function : ON - NONE - ON
Contact Plating : Gold
Contact Form : DPDT
Power Rating : 0.4 Volt-Amp
Mounting Style : Wire
Termination Style : Through Hole
Current Rating : 0.1 A
Voltage Rating AC : 28 V

Parameters:

Technical/Catalog Information	M2022LL3G03
Vendor	NKK Switches of America Inc
Category	Switches
Circuit	DPDT
Switch Function	On-On
Mounting Type	Panel Mount
Actuator Length	16.510mm
Actuator Type	Locking Lever
Bushing Thread	1/4-40
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination	Non-Illuminated
Termination Style	PC Pin
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	M2022LL3G03 M2022LL3G03
