Product Details

Description



Features:

• Memory capacity..................................ROM (See ROM expansion figure.)
                                                               RAM 10, 20 Kbytes
• Shortest instruction execution time ....50ns (f(XIN)=20MHz)
• Supply voltage ................................... 4.0 to 5.5V (f(XIN)=20MHz) Mask ROM version
                                                               2.7 to 5.5V (f(XIN)=10MHz, under planning)
• Low power consumption .................... 45mA (M30802MC-XXXGP)
• Interrupts .........................................  29 internal and 8 external interrupt sources, 4 software
                                                               interrupt sources; 7 levels (including key input interrupt)
• Multifunction 16-bit timer ................... 5 output timers + 6 input timers
• Serial I/O .............................................5 channels for UART or clock synchronous
• DMAC .................................................. 4 channels (trigger: 24 sources)
• DRAMC...............................................  .Used for EDO, FP, CAS before RAS refresh, self-refresh
• A-D converter.......................................10 bits X 8 channels (Expandable up to 10 channels)
• D-A converter....................................... 8 bits X 2 channels
• CRC calculation circuit ......................... 1 circuit
• X-Y converter ....................................... 1 circuit
• Watchdog timer.................................... 1 line
• Programmable I/O ...............................  123 lines
• Input port ..............................................1 line (P85 shared with NMI pin)
• Memory expansion .................................Available (16M bytes)
• Chip select output ................................ .4 lines
• Clock generating circuit ....................... ...2 built-in clock generation circuits
                                                                  (built-in feedback resistor, and external ceramic or quartz oscillator)


Application

Audio, cameras, office equipment, communications equipment, portable equipment, etc.

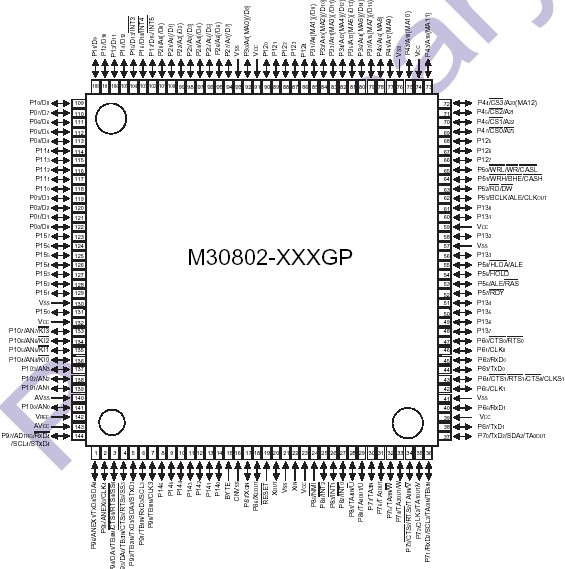

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Condition
Rated value
Unit
AVcc
 Supply voltage
VCC=AVCC
-0.3 to 6.5
V
Vcc Analog supply voltage
VCC=AVCC
-0.3 to 6.5
V
VO
 Input
voltage
 RESET,(maskROM : CNVSS, BYTE),
P30-P37, P40-P47, P50-P57,
P60-P67, P72-P77, P80-P87,
P00-P07, P10-P17, P20-P27,
P90-P97, P100-P107, P110-P114,
P120-P127, P130-P137, P140-P146,
P150-P157,VREF, XIN

-0.3 to Vcc+0.3
V
P70, P71
-0.3 to 6.5
V
VI Output
voltage
P00-P07, P10-P17, P20-P27,
P30-P37,P40-P47, P50-P57,
P60-P67,P72-P77, P80-P84,
P86, P87, P90-P97, P100-P107,
P110-P114, P120-P127, P130-P137,
P140-P146, P150-P157,XOUT
-0.3 to Vcc+0.3
V
P70, P71,
-0.3 to 6.5
A
Pd Power dissipation
500
mW
Topr Operating ambient temperature
Ta=25oC
-20 to 85 / -40 to 85(Note)
oC
Tstg Storage temperature
-65 to 150
oC



Description

The M16C80 (144-pin version) group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 144-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 16M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.

The M16C80 (144-pin version) group includes a wide range of products with different internal memory types and sizes and various package types.
