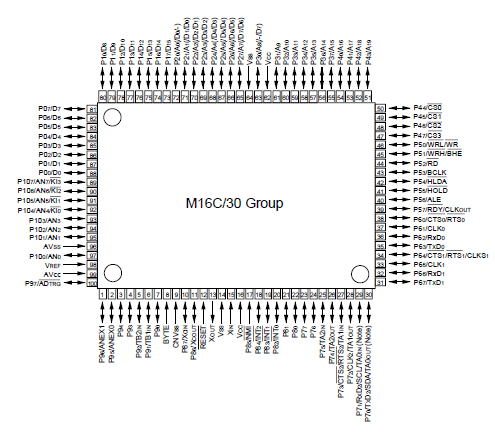

Features: SpecificationsDescription This is the description about M16C/26 Group of the SINGLE-CHIP...
• Memory capacity.............................................ROM (See Figure 1.1.4. ROM Expansion)RAM 2K to 3K bytes
• Shortest instruction execution time ...............62.5ns (f(XIN)=16MHZ, VCC=5V)
.......................100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait)
• Supply voltage ...............................................4.2V to 5.5V (f(XIN)=16MHZ, without software wait)
2.7V to 5.5V (f(XIN)=10MHZ with software one-wait)
• Low power consumption ................................25.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V)
• Interrupts .............................................. .......16 internal and 5 external interrupt sources, 4 software
interrupt sources; 7 levels (including key input interrupt)
• Multifunction 16-bit timer ...................... .........3 output timers + 2 input timers
• Serial I/O ........................................................3 channels (3 for UART or clock synchronous)
• DMAC .............................................................1 channels (trigger: 14 sources)
• A-D converter....................................... ..........10 bits X 8 channels (Expandable up to 10 channels)
• Watchdog timer.............................................. 1 line
• Programmable I/O port ........................ .........87 lines
• Input port ......................................................1 line (P85 shared with NMI pin)
• Memory expansion .........................................Available (to a maximum of 1M bytes)
• Chip select output ......................................... 4 lines
• Clock generating circuit ....................... ..........2 built-in clock generation circuits
(built-in feedback resistor, and external ceramic or quartz oscillator)
Symbol | Parameter | Condition | Rated value | Unit | |
Vcc | Supply voltage | VCC=AVC | -0.3 to 6.5 | V | |
AVcc | Analog supply voltage | VCC=AVC | -0.3 to 6.5 | V | |
VI | Input voltage |
RESET,CNVSS, BYTE, P00 to P07, P10 to P17, P20 to P27 P30 to P37, P40 to P47, P50 to P57, P60 to P67, P72 to P77, P80 to P87, P90 to P97, P100 to P107, VREF, XIN |
-0.3 to Vcc+0.3 | V | |
P70, P71 | -0.3 to 6.5 | V | |||
VO | Output voltage |
P00 to P07, P10 to P17, P20 to P27, P30 to P37,P40 to P47, P50 to P57, P60 to P67,P72 to P77, P80 to P84, P86, P87, P90 to P97, P100 to P107, XOUT |
-0.3 to Vcc+0.3 | V | |
P70, P71 | -0.3 to 6.5 | V | |||
Pd | Power dissipation | Topr=25 | 300 | mW | |
Topr | Operating ambient temperature | -20 to 85 / -40 to 85 (Note) | |||
Tstg | Storage temperature | -65 to 150 |
