Product Details

Description



Features:

· Switchable between 270000 pixels CCD and 320000 pixels CCD
· Switchable between NTSC (EIA) and PAL (CCIR) systems
· Internal electronic shutter : Shutter speed is selectable from 1/W, 1/125, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000 and 1/10 000 s, in addition to this, 1/100 s (PAL : 1/120 s) in Flicker-less mode using parallel or serial code. Shutter speed can also be controlled in 1 H period using an external trigger to the EXST input.
· Single +5 V power supply
· Package : 48-pin QFP(QFP048-P-I 01 O)

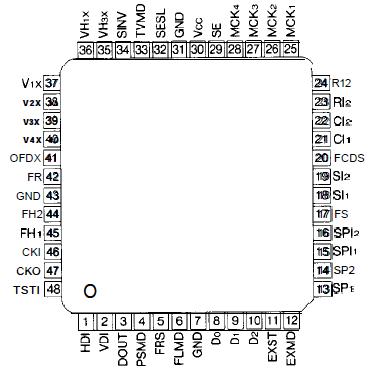

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Power voltage
VCC
-0.3to + 7.0
V
Input voltage
VI

-0.3 to +VCC 0.3
V
Output voltage
VO
-0.3 to +VCC 0.3
V
Operatina temperature
Topr
20 to +70
Storage temperature
Tstg
-55 to +150





Description

The LZ93N61 is a CMOS timing generator LSI which provides timing pulses used to drive a CCD area sensor, in combination with the SSG LSI (LZ93NI 9, LZ93B53).
