Product Details

Description



Features:

·Switchable between 270000 pixels CCD and 320000 pixels CCD
·Switchable between NTSC (EIA) and PAL (CCIR) systems
·Single +5 V power supply
·External synchronization is possible
·Package : 44-pin QFP(QFP044-P-101 O)

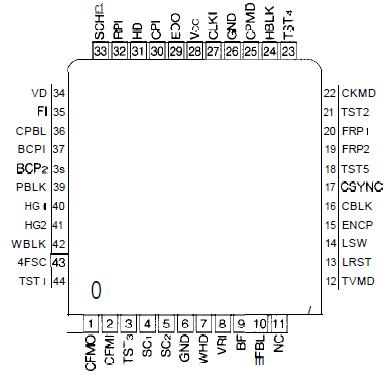

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Power voltage
VCC
-0.3to + 7.0
V
Input voltage
VI

-0.3 to +VCC 0.3
V
Output voltage
VO
-0.3 to +VCC 0.3
V
Operatina temperature
Topr
20 to +70
Storage temperature
Tstg
-55 to +150





Description

The LZ93N19 is a CMOS synchronous signal generator LSI which provides TV synchronous pulses and video signal processing pulses, in combination with the timing signal generator LSI (LZ93N61, LZ93F50, LZ93F33 or LZ95D37/M).
