LS7220

Features:

· 5040 Four-Digit Combinations (for a 10 digit Keypad)
· Combinations are Hard-Wire Programmed
·Sense Input Enables Operation
·Save Memory Feature for Valet Parking
·Convenience Delay Controlled by External Capacitor
·Static or Momentary Lock Control Output
·Save Memory and Lock Status Outputs
·+5V to +18V Operation (V_ss - V_DD)
·LS7220 (DIP), LS7220-S (SOIC) - See Figure 1

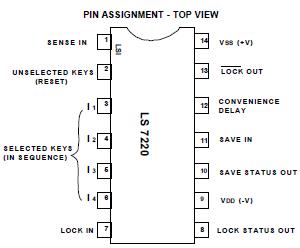

Pinout




Specifications

PARAMETER	SYMBOL	VALUE	UNIT
DC Supply Voltage	VSS - VDD	+20	V
Any Input Voltage	VIN	VSS - 20 to VSS + 0.5	V
Operating Temperature	TA	-25 to +85
Storage Temperature	TSTG	-65 to +150

Description

The LS7220 is a MOS digital lock circuit.  When wired to a ten-digit keypad, the circuit will recognize one four-digit combination out of a possible 5040 combinations.
