LS7210

Features:

• Programmable Delay from 6 ms to "Infinity"
• Can be Cascaded for Sequential Events or Extended Delay
• +4.75V to +15V Operation (Vss -VDD)
• On Chip Oscillator or External Clock time base
• High Noise Immunity

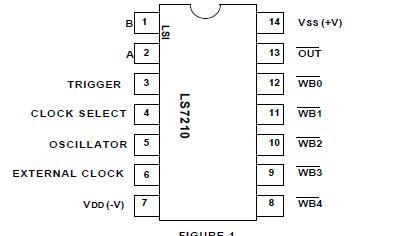

• LS7210 (DIP), LS7210-S (SOIC)-See Figure 1


Pinout




Specifications

	SYMBOL	VALUE	UNIT
DC Supply Voltage	VDD	+18	V
Voltage (Any Pin)	VIN	VSS -.3 to VDD +.3	V
Operating temperature	TA	-20 to +85
Storage temperature	TSTG	-65 to +150

Description

·The LS7210 is a monolithic MOS integrated circuit programmable digital timer that can generate a delay in the range of 6ms to infinity.

·The delay is programmed by 5 binary weighted input bits in combination with the time base provided. The chip can be operated in four different modes: Delayed Operate, Delayed Release, Dual Delay and One Shot. These modes are selected by the control inputs A and B.
