Features:

· Designed for 270 k/320 k-pixel B/W CCD area sensors with a dual-power-supply operation
· Switchable between EIA and CCIR modes
· Electronic shutter and EE control are possible
· Maximum shutter speed is selectable from approx. 1/100 000 s, 1/56 000 s and 1/32 000 s
· Starting shutter speed is selectable from approx. 1/100 000 s and 1/1 000 s
· Flicker-less function
· Switchable between normal and mirror images
· External synchronization is possible
· Level shifter for readout and shutter pulses included
· Dual +5 V and +12.5 V power supplies
· Package : 48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch


Pinout

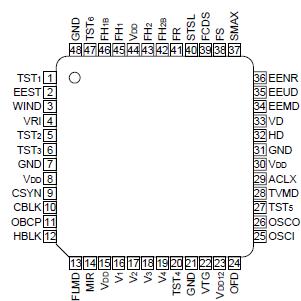

Connection Diagram


Specifications

PARAMETER

SYMBOL

RATING

UNIT

Supply voltage

VDD

-0.3 to +6.0

V

VDD12

-0.3 to +15.0

V

Input voltage

VI

-0.3 to VDD + 0.3

V

Output voltage

VO

-0.3 to VDD + 0.3

V

VO12

-0.3 to VDD12 + 0.3

V

Operating temperature

TOPR

-20 to +70

Storage temperature

TSTG

-55 to +150




Description

The LR38580 is a CMOS single-chip driver IC which generates timing pulses for driving 270 k/320 kpixel B/W CCD area sensors with a dual-powersupply operation, synchronous pulses for TV signals and processing pulses for video signals.
