Features: ·ARM7TDMI processor with 8 kB cache, operating at up to 60 MHz
·1 MB on-chip flash program memory with 128-bit access for high performance
·64 kB SRAM
·Boot ROM allows execution of flash code, external code, or flash programming via USB
·On-chip DC-to-DC converter can generate all required voltages from a single battery
or from USB power
·Multiple internal buses allow simultaneous simple DMA, USB DMA, and program execution from on-chip flash without contention
·External memory controller supports flash, SRAM, ROM, and SDRAM
·Advanced Vectored Interrupt Controller, supporting up to 30 vectored interrupts
·Innovative Event Router allows interrupt, power-up, and clock-start capabilities from up to 107 sources
·Multi-channel GP DMA controller that can be used with most on-chip peripherals as well as for memory-to-memory transfers
·Serial interfaces:
·Hi-Speed USB 2.0 device (480 Mbit/s or 12 Mbit/s) with on-chip physical layer
·UART with fractional baud rate generation, flow control, IrDA support, and FIFOs
·I2C-bus interface
·I2S-bus (Inter IC Sound bus) interface for independent stereo digital audio input and output
·SD/MMC memory card interface
·10-bit A/D converter with 5-channel input multiplexing
·16-bit stereo A/D and D/A converters with amplification and gain control
·Advanced clock generation and power control reduce power consumption
·Two 32-bit timers with selectable prescalers
·8-bit/4-bit LCD interface bus
·Real Time Clock can be clocked by 32 kHz oscillator or another source
·Watchdog Timer with interrupt and/or reset capabilities.
Pinout
Specifications
| Symbol |
Parameter |
Conditions |
Min |
Max |
Unit |
| VDD(1V8) |
supply voltage (1.8 V) |
|
-0.5 |
+1.95 |
V |
| VDD(3V3) |
supply voltage (3.3 V) |
|
-0.5 |
+3.6 |
V |
| VDD(EMC) |
external memory controller
supply voltage |
in 1.8 V range |
-0.5 |
+1.95 |
V |
| in 3.3 V range |
-0.5 |
+3.6 |
V |
| VIA |
analog input voltage |
|
-0.5 |
VVDD(ADC3V3) |
V |
| VI |
input voltage |
|
[2][3][4] -0.5 |
+5.0 |
V |
| |
[2][3][5] -0.5 |
+3.6 |
V |
| IDD |
supply current |
|
[6] <tbd> |
<tbd> |
mA |
| ISS |
ground current |
|
[7] <tbd> |
<tbd> |
mA |
| Tstg |
storage temperature |
|
-40 |
+125 |
|
| Ptot(pack) |
total power dissipation (per
package) |
based on package
heat transfer, not
device power
consumption |
- |
<tbd> |
W |
| Vesd |
electrostatic discharge voltage |
human body model |
[8] |
|
|
| all pins |
-2000 |
+2000 |
V |
| machine model |
[9] |
|
|
| all pins |
-200 |
+200 |
V |
[1] The following applies to Table 5:
a) This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive
static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maximum.
b) Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless
otherwise noted.
[2] All inputs are 5 V tolerant except external memory bus and USB pins.
[3] Including voltage on outputs in 3-state mode.
[4] 5 V tolerant pins
[5] Other I/O pins.
[6] Per supply pin.
[7] Per ground pin.
[8] Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 kW series resistor.

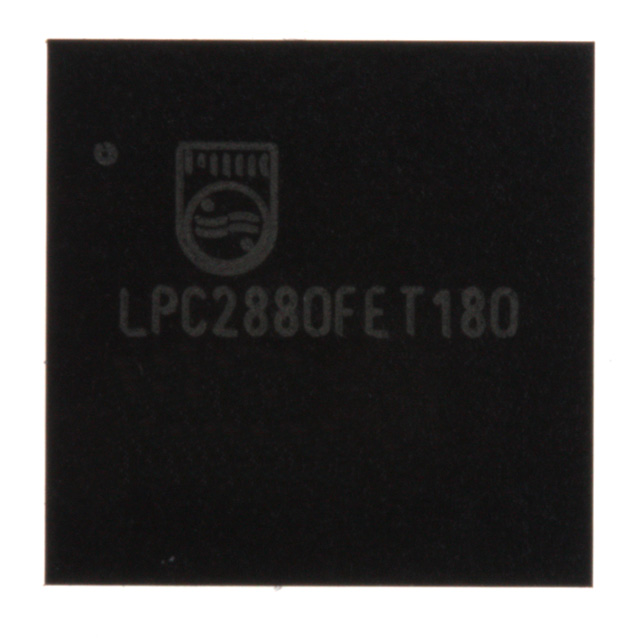

[9] Machine model: equivalent to discharging a 200 pF capacitor through a 0.75 mH coil and a 10 W series resistor.DescriptionThe LPC2880/LPC2888 are an ARM7-based microcontroller for portable applications requiring low power and high performance. It includes a USB 2.0 Hi-Speed device interface, an external memory interface that can interface to SDRAM and flash, an SD/MMC memory card interface, A/D and D/A converters, and serial interfaces including UART, I2C-bus, and I2S-bus. Architectural enhancements like multi-channel DMA, processor cache, simultaneous operations on multiple internal buses, and flexible clock generation help ensure that the LPC2880/LPC2888 can handle more demanding applications than many competing devices. The chip can be powered from a single battery, from the USB, or from regulated 1.8 V and 3.3 V.
LPC2888 Data Sheet
