LMX331

Guaranteed 1.8V to 5.5V Performance
-40to +125Automotive Temperature Range
Low Supply Current (60A/Comparator at VDD = 5.0V)
Input Common-Mode Voltage Range Includes Ground
No Phase Reversal for Overdriven Inputs
Low Output Saturation Voltage (100mV)
Internal 2mV Hysteresis (LMX331H/LMX393H/LMX339H)

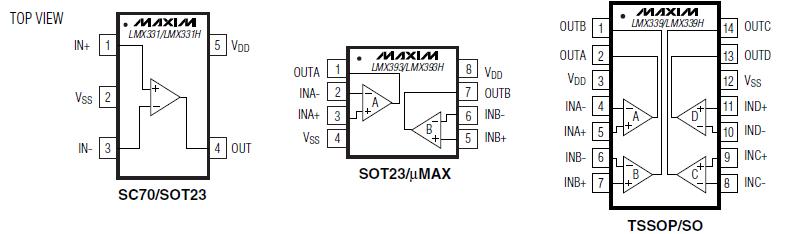

5-Pin SC70 Space-Saving Package (2.0mm*2.1mm*1.0mm) (LMX331/LMX331H)

Mobile Communications Notebooks and PDAs Automotive Applications Battery-Powered Electronics General-Purpose Portable Devices eneral-Purpose Low-Voltage Applications

Supply Voltage (VDD to VSS)....................................................-0.3V to +6V
All Other Pins .................................................. (VSS - 0.3V) to (VDD + 0.3V)
Continuous Power Dissipation (TA = +70)
5-Pin SC70 (derate 3.1mW/bove +70).......................................247mW
5-Pin SOT23 (derate 7.1mW/above +70)...................................571mW
8-Pin SOT23 (derate 8.9mW/above +70)...................................714mW
8-Pin MAX (derate 10.3mW/bove +70) ....................................825mW
14-Pin TSSOP (derate 9.1mW/above +70) ................................727mW
14-Pin SO (derate 8.3mW/bove +70)......................................666.7mW
Operating Temperature Range ............................................-40to +125
Junction Temperature........................................................................+150
Storage Temperature Range ..............................................-65 to +150
Lead Temperature (soldering, 10s) ..................................................+300

The LMX331/LMX393/LMX339 single/dual/quad comparators are drop-in, pin-for-pin-compatible replacements for the LMV331/LMV393/LMV339. The LMX331H/ LMX393H/LMX339H offer the performance of the LMX331/LMX393/LMX339 with the added benefit of internal hysteresis to provide noise immunity, preventing output oscillations even with slow-moving input signals.

Advantages of the LMX331/LMX393/LMX339 series include low supply voltage, small package, and low cost. The LMX331 is available in both 5-pin SC70 and SOT23 packages, LMX393 is available in both 8-pin MAX and smaller SOT23 packages, and the LMX339 is available in 14-pin TSSOP and SO packages. They are manufactured using advanced submicron CMOS technology. Designed with the most modern techniques, the LMX331/LMX393/LMX339 achieve superior performance over BiCMOS or bipolar versions on the market.

The LMX331/LMX393/LMX339 offer performance advantages such as wider supply voltage range, wider operating temperature range, better CMRR and PSRR, improved response time characteristics, reduced offset, reduced output saturation voltage, reduced input bias current, and improved RF immunity.
