LMX3161

Features: Single chip solution for DECT RF transceiver RF sensitivity to −93 dBm; RSSI sensitivity to −100 dBmTwo regulated voltage outputs for discrete amplifiers High gain (85 dB) intermediate frequency stripAllows unregulated 3.0V5.5V supply voltage Power down mode for increased cur...

product image

LMX3161 Picture
See larger image
SeekIC No. : 004397395 Detail

LMX3161: Features: Single chip solution for DECT RF transceiver RF sensitivity to −93 dBm; RSSI sensitivity to −100 dBmTwo regulated voltage outputs for discrete amplifiers High gain (85 dB) inte...

LMX3161 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMX3161
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Single chip solution for DECT RF transceiver
RF sensitivity to −93 dBm; RSSI sensitivity to −100 dBm
Two regulated voltage outputs for discrete amplifiers
High gain (85 dB) intermediate frequency strip
Allows unregulated 3.0V5.5V supply voltage
Power down mode for increased current savings
System noise figure 6.5 dB (typ)


Application

Digital Enhanced Cordless Telecommunications (DECT)
Personal wireless communications (PCS/PCN)
Wireless local area networks (WLANs)
Other wireless communications systems


Pinout

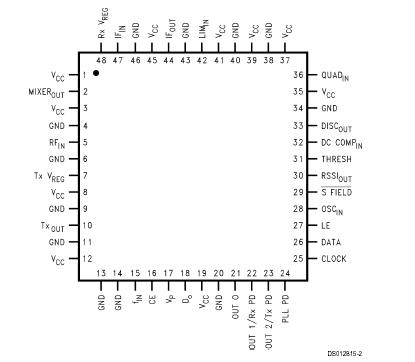

Connection Diagram


Specifications

 Power Supply Voltage (VCC) ...............−0.3V to +6.5V
VP .......................................................−0.3V to +6.5V
Voltage on Any Pin with
GND = 0V (VI) ..............................−0.3V to VCC +0.3V
Storage Temperature Range (TS) .−65°C to +150°C
Lead Temp. (solder, 4 sec)(TL) ......................+260°C
Note 1: Absolute Maximum Ratings indicate limits beyond which damage the device may occur. Recommended Operating Conditions indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics section. The guaranteed specifications apply only for the test conditions listed.

Note 2: This device is a high performance RF integrated circuit with an ESD rating < KeV and is ESD sensitive. Handling and assembly of this device should only be done at ESD work stations.


Description

The LMX3161 Single Chip Radio Transceiver is a monolithic, integrated radio transceiver optimized for use in a Digital Enhanced Cordless Telecommunications (DECT) system. It is fabricated using National's ABiC V BiCMOS process (fT = 18 GHz). The LMX3161 contains phase locked loop (PLL), transmit and receive functions. The 1.1 GHz PLL block is shared between transmit and receive section. The transmitter includes a frequency doubler, and a high frequency buffer. The receiver consists of a 2.0 GHz low noise mixer, an intermediate frequency (IF) amplifier, a high gain limiting amplifier, a frequency discriminator, a received signal strength indicator (RSSI), and an analog DC compensation loop. The PLL, doubler, and buffers can be used to implement open loop modulation along with an external VCO and loop filter.

The circuit features on-chip voltage regulation to allow supply voltages ranging from 3.0V to 5.5V. Two additional voltage regulators provide a stable supply source to external discrete stages in the Tx and Rx chains. The IF amplifier, high gain limiting amplifier, and discriminator are optimized for 110 MHz operation, with a total IF gain of 85 dB. The single conversion receiver architecture provides
