LMV851

PinoutSpecificationsSupply Min2.7 VoltSupply Max5.5 VoltGain Bandwidth8 MHzSlew Rate4.5 Volts/usecOffset Voltage max, 25C1 mVMax Input Bias Current0.5 nAInput OutputTypeVcm to V-, R-R OutSupply Current Per Channel0.41 mAPowerWise Rating 251.3 uA/MHzChannels1 ChannelsOutput Current62 mAShut downNoS...

product image

LMV851 Picture
See larger image
SeekIC No. : 004397296 Detail

LMV851: PinoutSpecificationsSupply Min2.7 VoltSupply Max5.5 VoltGain Bandwidth8 MHzSlew Rate4.5 Volts/usecOffset Voltage max, 25C1 mVMax Input Bias Current0.5 nAInput OutputTypeVcm to V-, R-R OutSupply Curr...

LMV851 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMV851
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Supply Min2.7 Volt
Supply Max5.5 Volt
Gain Bandwidth8 MHz
Slew Rate4.5 Volts/usec
Offset Voltage max, 25C1 mV
Max Input Bias Current0.5 nA
Input OutputTypeVcm to V-, R-R Out
Supply Current Per Channel0.41 mA
PowerWise Rating 251.3 uA/MHz
Channels1 Channels
Output Current62 mA
Shut downNo
Special FeaturesEMI Hardened
Voltage Noise11 nV/root(Hz)
Temperature Max125 deg C
Temperature Min-40 deg C
FunctionOp Amp
Automotive Selection GuideYes
PowerWiseYes
View Using Catalog



Description

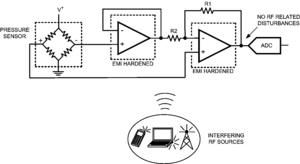

National's LMV851/LMV852/LMV854 are CMOS input, low power op amp ICs, providing a low input bias current, a wide temperature range of −40°C to +125°C and exceptional performance, making them robust general purpose parts. Additionally, the LMV851/LMV852/LMV854 are EMI hardened to minimize any interference so they are ideal for EMI sensitive applications. The unity gain stable LMV851/LMV852/LMV854 feature 8 MHz of bandwidth while consuming only 0.4 mA of current per channel. These parts also maintain stability for capacitive loads as large as 200 pF. The LMV851/LMV852/LMV854 provide superior performance and economy in terms of power and space usage. This family of parts has a maximum input offset voltage of 1 mV, a rail-to-rail output stage and an input common-mode voltage range that includes ground. Over an operating supply range from 2.7V to 5.5V the LMV851/LMV852/LMV854 provide a CMRR of 92 dB, and a PSRR of 93 dB. The LMV851/LMV852/LMV854 are offered in the space saving 5-Pin SC70 package, the 8-Pin MSOP and the 14-Pin TSSOP package.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LMV851MG CMOS7 0 16561 0 0 954000 4 270700104
LMV851MGE CMOS7 0 16561 0 0 954000 4 270700104
LMV851MGX CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Application Notes

Title Size in Kbytes Date
AN-1698: Application Note 1698 A Specification for EMI Hardened Operational Amplifiers 208 Kbytes 26-Sep-07 Download
AN-1698 (Japanese): Application Note 1698 A Specification for EMI Hardened Operational Amplifiers
640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">		 201 Kbytes
AN-1698 (Chinese): Application Note 1698 A Specification for EMI Hardened Operational Amplifiers
 344 Kbytes   640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1760: Application Note 1760 EMIRR Evaluation Boards for LMV851/LMV852/LMV854 445 Kbytes 11-Jul-08 Download
AN-1760 (Japanese): Application Note 1760 EMIRR Evaluation Boards for LMV851/LMV852/LMV854
640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">		 322 Kbytes
AN-1760 (Chinese): Application Note 1760 EMIRR Evaluation Boards for LMV851/LMV852/LMV854
 368 Kbytes   640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
