LMV821

Features: 2.5-V, 2.7-V, and 5-V Performance-40 to 125 OperationNo Crossover DistortionLow Supply Current at VCC+ = 5 V:LMV821?0.3 mA TypLMV822?0.5 mA TypLMV824?1 mA TypRail-to-Rail Output SwingGain Bandwidth of 5.5 MHz Typ at 5 VSlew Rate of 1.9 V/s Typ at 5 VApplicationAudioAutomotiveBroadbandDig...

product image

LMV821 Picture
See larger image
SeekIC No. : 004397287 Detail

LMV821: Features: 2.5-V, 2.7-V, and 5-V Performance-40 to 125 OperationNo Crossover DistortionLow Supply Current at VCC+ = 5 V:LMV821?0.3 mA TypLMV822?0.5 mA TypLMV824?1 mA TypRail-to-Rail Output SwingGain ...

LMV821 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMV821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2.5-V, 2.7-V, and 5-V Performance
-40 to 125 Operation
No Crossover Distortion
Low Supply Current at VCC+ = 5 V:
LMV821?0.3 mA Typ
LMV822?0.5 mA Typ
LMV824?1 mA Typ
Rail-to-Rail Output Swing
Gain Bandwidth of 5.5 MHz Typ at 5 V
Slew Rate of 1.9 V/s Typ at 5 V




Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless




Specifications

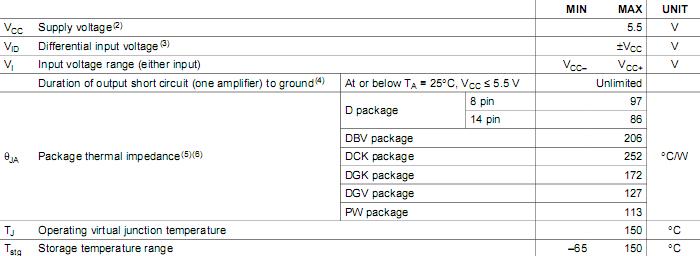

Connection Diagram

Supply Min 2.5 Volt
Supply Max 5.5 Volt
Gain Bandwidth 5.6 MHz
Slew Rate 2 Volts/usec
Offset Voltage max, 25C 3.5 mV
Max Input Bias Current 150 nA
Input OutputType Vcm to V-, R-R Out
Supply Current Per Channel 0.3 mA
PowerWise Rating 2 53.6 uA/MHz
Channels 1 Channels
Output Current 40 mA
Shut down No
Special Features Undefined
Voltage Noise 24 nV/root(Hz)
Temperature Max 85 deg C
Temperature Min -40 deg C
Function Op Amp
View Using Catalog





Description

The LMV821 single, LMV822 dual, and LMV824 quad devices are low-voltage (2.5 V to 5.5 V), low-power commodity operational amplifiers. Electrical characteristics are very similar to the LMV3xx operational amplifiers (low supply current, rail-to-rail outputs, input common-mode range that includes ground). However, the LMV8xx devices offer a higher bandwidth (5.5 MHz typical) and faster slew rate (1.9 V/s typical).

The LMV8xx devices are cost-effective solutions for applications requiring low-voltage/low-power operation and space-saving considerations. The
LMV821 is available in the ultra-small DCK package, which is approximately half the size of SOT-23-5. The DCK package saves space on printed circuit boards and enables the design of small portable electronic devices (cordless and cellular phones, laptops, PDAs, PCMIA). It also allows the designer to place the device closer to the signal source to reduce noise pickup and increase signal integrity.

The LMV8xx devices are characterized for operation from -40to 85. The LMV8xxI devices are characterized for operation from -40 to 125.
