Features:

• 6 million pixels/s conversion rate
• Digitally programmed gain and offset for red, green and blue color balancing
• Correlated Double Sampling for lowest noise from CCD sensors
• Compatible with CCD and CIS type image sensors
• Internal Voltage Reference Generation
• TTL/CMOS compatible input/output




Application

• Color Flatbed Document Scanners
• Color Sheetfed Scanners
• Multifunction Imaging Products
• Digital Copiers
• General Purpose Linear Array Imaging




Pinout

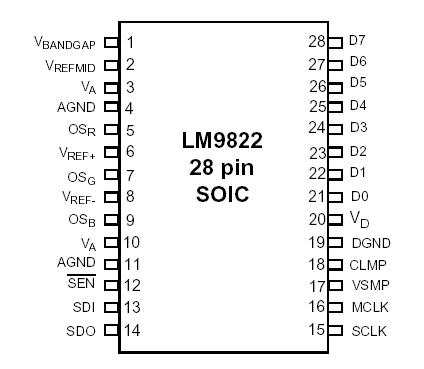

Connection Diagram


Specifications

Positive Supply Voltage (V+=VA=VD)
With Respect to GND=AGND=DGND .............................................................6.5V
Voltage On Any Input or Output Pin ........................................-0.3V to V++0.3V
Input Current at any pin (Note 3) ...........................................................±25mA
Package Input Current (Note 3) ..............................................................±50mA
Package Dissipation at TA = 25°C .........................................................(Note 4)
ESD Susceptibility (Note 5)
Human Body Model ....................................................................................7000V
Machine Model .............................................................................................450V
Soldering Information
Infrared, 10 seconds (Note 6) ..................................................................235°C
Storage Temperature .............................................................-65°C to +150°C


Description

The LM9822 is a high performance Analog Front End (AFE) for image sensor processing systems. It performs all the analog and mixed signal functions (correlated double sampling, color specific gain and offset correction, and analog to digital conversion) necessary to digitize the output of a wide variety of CIS and CCD sensors. The LM9822 has a 14 bit 6MHz ADC.
