LM9800

Features: 2.5 million pixels/s conversion rate Implements Correlated Double Sampling for minimum noise and offset error Pixel-to-pixel gain correction for individual pixels maximizes dynamic range and resolution, even on weak pixelsReference and signal sampling points digitally controlled 25ns ...

product image

LM9800 Picture
SeekIC No. : 004396297 Detail

LM9800: Features: 2.5 million pixels/s conversion rate Implements Correlated Double Sampling for minimum noise and offset error Pixel-to-pixel gain correction for individual pixels maximizes dynamic range ...

floor Price/Ceiling Price

Part Number:
LM9800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2.5 million pixels/s conversion rate
Implements Correlated Double Sampling for minimum noise and offset error
Pixel-to-pixel gain correction for individual pixels maximizes dynamic range and resolution, even on "weak" pixels
Reference and signal sampling points digitally controlled
25ns increments for maximum performance
Generates all necessary CCD clock signals
Compatible with a wide range of linear CCDs
TTL/CMOS input/output compatible



Application

Color and Greyscale Flatbed and Sheetfed Scanners
General Purpose CCD Imaging



Pinout

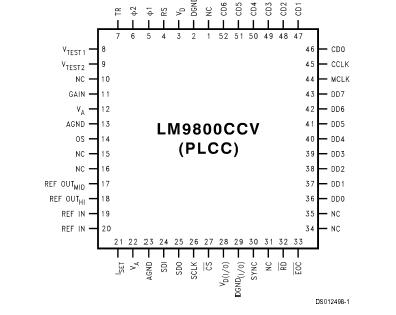

  Connection Diagram


Specifications

Positive Supply Voltage .......(V+ = VA = VD = VD(I/O))
With Respect to GND = AGND = DGND =
DGND(I/O) ...........................................................6.5V
Voltage On Any Input or Output Pin 0.3V to V+ +0.3V
Input Current at any pin (Note 3) ..................±25 mA
Package Input Current (Note 3) ...................±50 mA
Package Dissipation ................a.t TA = 25°C (Note 4)
ESD Susceptibility (Note 5)
Human Body Model ...........................................3000V
Soldering Information
Infrared, 10 seconds (Note 6) ........................300°C
Storage Temperature ...................−65°C to +150°C



Description

The LM9800 is a high performance integrated signal processor/digitizer for linear CCD image scanners. The LM9800 performs all the analog processing (correlated double sampling for black level and offset compensation, pixel-by-pixel gain adjust, and 8-bit analog-to-digital conversion) necessary to maximize the performance of a wide range of linear CCD sensors. The LM9800 can be digitally programmed to work with a wide variety of CCDs from different manufacturers.

An internal configuration register sets CCD and sampling timing to maximize performance, simplifying the design and manufacturing processes.

The LM9800 can be used with sequential or parallel output color CCDs. Coarse gain switching brings weak Blue signals up to Red/Green levels for best performance. For complementary voltage reference see the LM4041.
