Features:

 Quiet fade-in/out mute function
 Stereo variable line-out pins
 AC output short circuit protection
 Thermal shutdown protection


Application

 Audio amplifier for stereo TVs
 Audio amplifier component stereo
 Audio amplifier compact stereo


Pinout

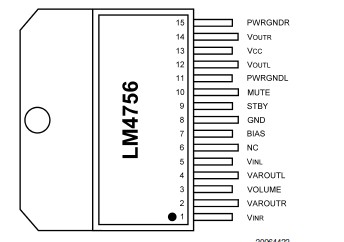

Connection Diagram


Specifications

Supply Voltage ................................................30V
Output Current ..........................Internally Limited
Power Dissipation (Note 5)............................ 22W
ESD Susceptibility (Note 6) .........................2000V
ESD Susceptibility (Note 7) ...........................250V
Junction Temperature .................................150°C
Soldering Information
T Package (10 sec) .....................................260°C
Storage Temperature............... −40°C to +150°C
Input Signal Voltage Range ............................±3V


Description

The LM4756 is a stereo audio amplifier capable of delivering 7W/channel at 10% distortion into a 4 or 8 load. The power amp has an internally set gain of 30dB. A 0V5V DC controlled volume block provides 80dB of attenuation from input to line-out. Line outputs are available after the volume control for signal routing.

The amplifier has a smooth transition fade-in/out mute and a power conserving standby function which are controlled through TTL or CMOS logic. Both functions provide over 75dB of attenuation.

The LM4756 maintains an excellent Signal-to-Noise ratio of greater than 70dB with a low noise floor less than 2mV. The IC also maintains above 50dB of channel separation.

The LM4756 is available in a 15-lead non-isolated plastic package and is designed for use in TV applications requiring single supply operation.
