LM4734

Features: Low external component countQuiet fade-in/out mute modeLow power standby modeWide supply range: 20V - 60VApplicationAudio amplifier for component stereoAudio amplifier for compact stereoAudio amplifier for home theater in a box (HTB)Audio amplifier for high-end and HD TVsPinoutSpecifica...

product image

LM4734 Picture
See larger image
SeekIC No. : 004395757 Detail

LM4734: Features: Low external component countQuiet fade-in/out mute modeLow power standby modeWide supply range: 20V - 60VApplicationAudio amplifier for component stereoAudio amplifier for compact stereoA...

LM4734 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM4734
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low external component count
 Quiet fade-in/out mute mode
 Low power standby mode
 Wide supply range: 20V - 60V


Application

 Audio amplifier for component stereo
 Audio amplifier for compact stereo
 Audio amplifier for home theater in a box (HTB)
 Audio amplifier for high-end and HD TVs


Pinout

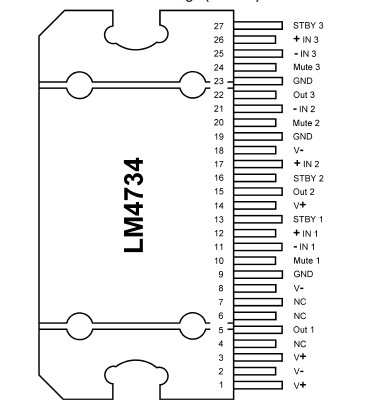

Connection Diagram


Specifications

Supply Voltage |V+| + |V-| ...............................................................60V
Common Mode Input Voltage ..............(V+ or V-) and |V+| + |V-| 54V
Differential Input Voltage (Note 12) ................................................54V
Output Current ..........................................................Internally Limited
Power Dissipation (Note 3) ..........................................................125W
ESD Susceptability (Note 4) ..........................................................2.0kV
ESD Susceptability (Note 5)........................................................... 200V
Junction Temperature (TJMAX) (Note 9)....................................... 150°C
Soldering Information
  TA Package (10 seconds) ..........................................................260°C
Storage Temperature................................................. -40°C to +150°C
Thermal Resistance
  JA ..........................................................................................30°C/W
  JC .........................................................................................1.0°C/W


Description

The LM4734 is a three channel audio amplifier capable of typically delivering 20W per channel of continuous average output power into a 4 or 8 load with less than 10% THD+N from 20Hz - 20kHz.

The LM4734 has short circuit protection and a thermal shut down feature that is activated when the die temperature exceeds 150°C. The LM4734 also has an under voltage lock out feature for click and pop free power on and off. Each amplifier of the LM4734 has an independent smooth transition fade-in/out mute and a power conserving standby mode. The mute and standby modes can be controlled by external logic.

The LM4734 has a wide supply operating supply range from ±10V - ±30V allowing for lower cost unregulated power supplies to be used.

The LM4734 can easily be configured for bridge or parallel operation for higher power and bi-amp solutions.
