Product Details

Description



Features:

 Low external component count
 Quiet fade-in/out mute mode
 Wide supply range: 20V - 80V


Application

 Audio amplifier for component stereo
 Audio amplifier for compact stereo
 Audio amplifier for self-powered speakers
 Audio amplifier for high-end and HD TVs


Pinout

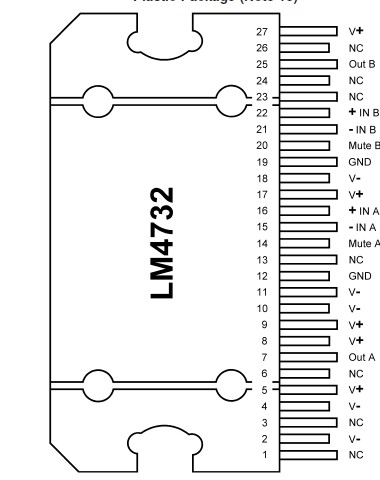

Connection Diagram


Specifications

Supply Voltage |V+| + |V-| ............................................................80V
Common Mode Input Voltage ...........(V+ or V-) and |V+| + |V-| 80V
Differential Input Voltage (Note 12)............................................. 60V
Output Current ........................................................Internally Limited
Power Dissipation (Note 3)....................................................... 125W
ESD Susceptability (Note 4)...................................................... 3.0kV
ESD Susceptability (Note 5)....................................................... 200V
Junction Temperature (TJMAX) (Note 9) ...................................150°C
Soldering Information
   TA Package (10 seconds)..................................................... 260°C
Storage Temperature .............................................-40°C to +150°C
Thermal Resistance
   JA .....................................................................................30°C/W
   JC.................................................................................... 0.8°C/W


Description

The LM4732 is a stereo audio amplifier capable of typically delivering 50W per channel of continuous average output power into a 4 or 8 load with less than 10% THD+N from 20Hz - 20kHz.

The LM4732 has short circuit protection and a thermal shut down feature that is activated when the die temperature exceeds 150°C. The LM4732 also has an under voltage lock out feature for click and pop free power on and off. Each amplifier of the LM4732 has an independent smooth transition fade-in/out mute.

The LM4732 has a wide operating supply range from +/-10V - +/-40V allowing for lower cost unregulated power supplies to be used.

The LM4732 amplifiers can easily be configured for bridge or parallel operation for 100W mono solutions.
