Features:

· OUTPUT VOLTAGERANGE : 1.2 TO 37V
· OUTPUT CURRENT IN EXCESSOF 1.5A
· 0.1% LINE AND LOAD REGULATION
· FLOATINGOPERATION FOR HIGH VOLTAGES
· COMPLETE SERIES OF PROTECTIONS :
CURRENT LIMITING, THERMAL
SHUTDOWN AND SOA CONTROL





Pinout

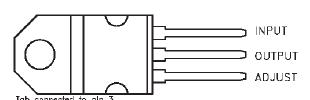

  Connection Diagram




Specifications

Output Current 1500, 500 mA
Output Voltage Undefined Volt
Input Min Voltage 4.2 Volt
Input Max Voltage 40 Volt
Adjustable Output Yes
On/Off Pin No
Error Flag No
Temperature Min -55 deg C
Temperature Max 125, 150 deg C
RegType Linear Regulator
View Using Catalog


Symbol Parameter
Value
Unit
Vi-o Input-output Differential Voltage
40
V
IO Output Current
Internally limited
Top Operating Junction Temperature for: LM117
LM217
LM317

-55 to 150
-25 to 150
0 to 125



Ptot Power Dissipation
Internally limited
Tstg Storage Temperature
65 to + 150





Description

The LM117 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM117 is packaged in standard transistor packages which are easily mounted and handled.

In addition to higher performance than fixed regulators, the LM117 series offers full overload protection available only in IC's. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.

Normally, no capacitors are needed unless the device is situated more than 6 inches from the input filter capacitors in which case an input bypass is needed. An optional output capacitor can be added to improve transient response. The adjustment terminal can be bypassed to achieve very high ripple rejection ratios which are difficult to achieve with standard 3-terminal regulators.

Besides replacing fixed regulators, the LM117 is useful in a wide variety of other applications. Since the regulator is "floating" and sees only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input to output differential is not exceeded, i.e., avoid short-circuiting the output.

Also, it makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment pin and output, the LM117 can be used as a precision current regulator. Supplies with electronic shutdown can be achieved by clamping the adjustment terminal to ground which programs the output to 1.2V where most loads draw little current.

For applications requiring greater output current, see LM150 series (3A) and LM138 series (5A) data sheets. For the negative complement, see LM137 series data sheet.
