LG1625AXF

Features: ` High data-rate laser diode/LED driver` Adjustable output current` Operation up to 3 Gbits/s` Single 5.2 V power supply` 90 ps rise and fall timesApplication· SONET/SDH transmission systems· SONET/SDH test equipment· Optical transmittersPinoutSpecificationsStresses in excess of the abso...

product image

LG1625AXF Picture
See larger image
SeekIC No. : 004394006 Detail

LG1625AXF: Features: ` High data-rate laser diode/LED driver` Adjustable output current` Operation up to 3 Gbits/s` Single 5.2 V power supply` 90 ps rise and fall timesApplication· SONET/SDH transmission syste...

LG1625AXF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LG1625AXF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High data-rate laser diode/LED driver
` Adjustable output current
` Operation up to 3 Gbits/s
` Single 5.2 V power supply
` 90 ps rise and fall times


Application

· SONET/SDH transmission systems
· SONET/SDH test equipment
· Optical transmitters


Pinout

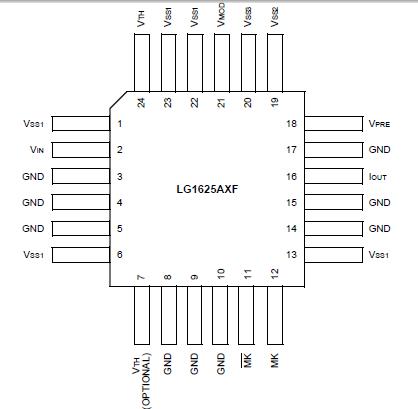

Connection Diagram


Specifications

Stresses in excess of the absolute maximum ratings can cause permanent or latent damage to the device.

These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this device specification. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.

Absolute Maximum Ratings (at TA = 25 unless otherwise specified)

Parameter Symbol Min Max Unit
Supply Voltage VSS - 5.95 V
Storage Temperature Tstg -40 125
Operating Case Temperature Range TC 0 75
Input Voltage VI GND VSS V
Power Dissipation PD - 1 W



Description

The LG1625AXF is a gallium-arsenide (GaAs) laser diode driver to be used with direct modulated laser diodes in high-speed nonreturn-to-zero (NRZ) transmission systems. The device is made in a high-performance 0.9 mm gate GaAs heterojunction FET technology that utilizes high-density MIM capacitors, airbridge interconnect, and NiCr film precision resistors.

The device contains three cascaded stages, operates with a single 5.2 V power supply and accepts ECL level inputs. Voltages control the modulated output current and laser prebias current. The LG1625AXF is available in a 24-lead hermetic, gullwing package.

A test fixture (TF1006A) with SMA connectors is available to allow quick evaluation of the LG1625AXF.
