Product Details

Description



Features:

• On-chip LCD drive circuit (80 bits)
• Display duty selection ranging from 1/64 to 1/256
• Supports use of chip disable pin for lower large panel power supply dissipation
• Supports externally supplied bias voltage
• Operating power supply voltage/operating temperature include
  VDD (logic block) : 5 V ±10 % / 20 to +75 °C
  VDD-VEE (LCD block) : 12 V to 32 V / 20 to +75°C
• Data transfer clock provides maximum 3.0 MHz and supports bidirectional shift
• 4-bit parallel data input
• CMOS process
• 100-pin flat plastic package

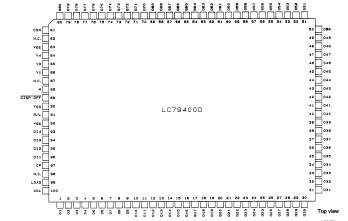

Pinout

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage (logic) VDD max   0.3 to +7.0 V
Maximum supply voltage (LCD) VDD - VEE max*1   0 to 35 V
Maximum input voltage VI max   0.3 to VDD + 0.3 V
Storage temperature range Tstg   40 to +125 °C
