Product Details

Description



Features:

• 1048576 words ´ 8 bits organization
• Supply voltage range: 2.6 to 5.5
• Fast access time(tAA): 120 ns (max.) VCC = 4.5 to 5.5 V
(tCA): 100 ns (max.) VCC = 4.5 to 5.5 V
200 ns (max.) VCC = 2.6 to 5.5 V
• Operating current 55 mA (max.)
• Standby current 30 A (max.)
• Full static operation (internal clocked type)
• 3 state outputs
• JEDEC standard pin configuration
• Package type
LC378100QM: SOP32 (525 mil)
LC378100QT: TSOP32 (8 mm ´ 20 mm)

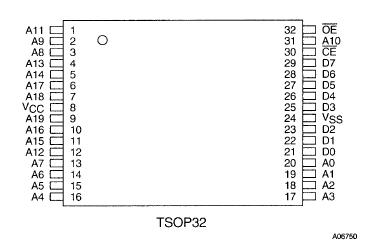

Pinout

Connection Diagram Connection Diagram


Specifications

Characteristic
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCCmax

0.3 to +7.0
V
Input pin voltage
VIN

0.3* to VCC + 0.3
V
Supply output voltage
VOUT

0.3 to VCC + 0.3
V
Allowable power dissipation Pd max Ta = 25°C; Reference values for the SANYO DIP package
1.0
W
Operating Temperature range
TOPR

10 to +70
°C
Storage temperature range
TSTG

55 to +125
°C


Note: 1. Permanent device damage may occur if Absolute Maximum Ratings are exceeded. Functional operation should be restricted to Recommended Operating Conditions.
2. VIN (min) = 3.0 V (pulse width  30 ns)




Description

The LC378100QM and LC378100QT are 1,048,576-word × 8-bit organization (8,388,608-bit) mask programmable read only memories. They feature a wide operating voltage range (2.6 to 5.5 V), a 100-ns access time (tCA) at VCC = 4.5 to 5.5 V, and a 200-ns access time at VCC = 2.6 to 3.3 V. Thus these LSIs can be used in a wide range of systems, from 5-V systems that require high-speed access to 3-V systems that use batteries.
