LC378000RP

Features: • Supply voltage range: 2.6 to 5.5 V• Access time (tAA): 100 ns (VCC = 4.5 to 5.5 V) (tCA): 110 ns (VCC = 4.5 to 5.5 V) 200 ns (VCC = 2.6 to 5.5 V)• Switchable between 8-bit and 16-bit data path widths Byte mode: 1,048,576 words * 8 bits Word mode: 524,288 words *16 bit...

product image

LC378000RP Picture
See larger image
SeekIC No. : 004391628 Detail

LC378000RP: Features: • Supply voltage range: 2.6 to 5.5 V• Access time (tAA): 100 ns (VCC = 4.5 to 5.5 V) (tCA): 110 ns (VCC = 4.5 to 5.5 V) 200 ns (VCC = 2.6 to 5.5 V)• Switchable between 8-...

LC378000RP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC378000RP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage range: 2.6 to 5.5 V
• Access time (tAA): 100 ns (VCC = 4.5 to 5.5 V)
                      (tCA): 110 ns (VCC = 4.5 to 5.5 V)
                                200 ns (VCC = 2.6 to 5.5 V)
• Switchable between 8-bit and 16-bit data path widths
   Byte mode: 1,048,576 words * 8 bits
   Word mode: 524,288 words *16 bits
• Operating current drain: 90 mA (maximum)
• Standby current: 30 A (maximum)
• Fully static operation (internal synchronization)
• Three-state outputs
• Package: 42-pin DIP (600 mil) plastic package


Pinout

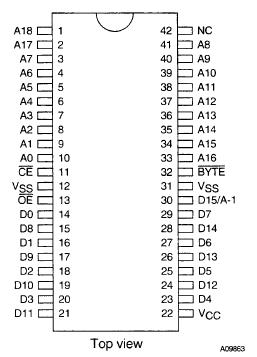

Connection Diagram


Specifications

Parameter Symbol Condition
Rating
Unit
Supply voltage VCC
0.3 to +7.0
V
Input pin voltage VIN
0.3 to VCC + 0.3
V
Output pin voltage VOUT
0.3 to VCC + 0.3
V
Allowable power dissipation Pd max Ta = 25°C, reference value for the Sanyo DIP.
1.0
W
Operating temperature Topr
10 to +70
°C
Storage temperature Tstg
55 to +125
°C
Note: Application of stresses greater than or equal to the maximum ratings may lead to device destruction.
*: Minimum value minus 3.0 V for pulses with widths of 30 ns or less.


Description

The LC378000RP is an 8-Mbit mask ROM that can be switched between byte mode, which provides an 8-bit× 1,048,576-word structure, and word mode, which provides a 16-bit×524,288-word structure. Since this device operates over the wide supply voltage range of 2.6 to 5.5 V and achieves access times (tAA) of 100 ns (at VCC = 4.5 to 5.5 V) and 200 ns (at VCC = 2.6 to 5.5 V), it can be used in a wide range of systems, from 5-V systems requiring high-speed access to 3-V battery operated systems.
