LC3564RT-15LV

Features: Supply voltage range: 2.0 to 3.6V• 3V operation: 2.7 to 3.6V• Battery operation: 2.0 to 2.4V High-speed access time• 3V operation- LC3564RM,RT-10LV: 100ns (max)- LC3564RM,RT-12LV: 120ns (max)- LC3564RM,RT-15LV: 150ns (max)• Battery operation- LC3564RM,RT-10LV: 20...

product image

LC3564RT-15LV Picture
See larger image
SeekIC No. : 004391602 Detail

LC3564RT-15LV: Features: Supply voltage range: 2.0 to 3.6V• 3V operation: 2.7 to 3.6V• Battery operation: 2.0 to 2.4V High-speed access time• 3V operation- LC3564RM,RT-10LV: 100ns (max)- LC3564R...

LC3564RT-15LV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC3564RT-15LV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Supply voltage range: 2.0 to 3.6V
• 3V operation: 2.7 to 3.6V
• Battery operation: 2.0 to 2.4V
High-speed access time
• 3V operation
- LC3564RM,RT-10LV: 100ns (max)
- LC3564RM,RT-12LV: 120ns (max)
- LC3564RM,RT-15LV: 150ns (max)
• Battery operation
- LC3564RM,RT-10LV: 200ns (max)
- LC3564RM,RT-12LV: 250ns (max)
- LC3564RM,RT-15LV: 300ns (max)
Very-low standby current
• 3V operation
- Ta 70°C: 1.0A
- Ta85°C: 3.0A
• Battery operation
- Ta 70°C: 0.85A
- Ta85°C: 2.5A
Operating temperature range: 40 to +85°C
Data retention supply voltage: 2.0 to 3.6V
Input/output levels: CMOS Compatible (0.8Vcc/0.2Vcc)
3 control inputs (OE, CE1, CE2)
Common-pin input/outputs, 3-state output
Clock not needed (fully-static RAM)
Package
• SOP 28-pin (450mil) plastic package: LC3564RM series
• TSOP 28-pin (8* 13.4mm) plastic package:LC3564RT series


Pinout

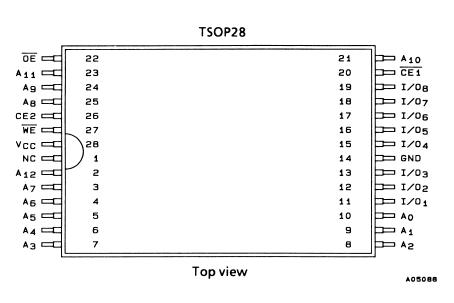

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCC max
4.6
V
Input voltage range
VIN
-0.3 to VCC + 0.3
V
Input/output voltage range
VI/O
-0.3 to VCC + 0.3
V
Operating temperature range
Topr
-40 to +85
°C
Storage temperature range
Tstg
-55 to +125
°C
Note: Permanent device damage may occur if Absolute Maximum Ratings are exceeded. Functional operation should be restricted to Recommended operating conditions. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.


Description

The LC3564RT-15LV are 8192-word × 8bit, asynchronous, silicon gate, low-voltage CMOS SRAM LSIs.They operate from a 2.0 to 3.6V supply, making them ideal for handheld, battery-operated equipment.

LC3564RT-15LV are fully CMOS devices employing 2-layer A1 wiring to realize high-speed access, low operating current consumption and very low standby current. They incorporate control signal inputs; OE for high-speed memory access, and 2 chip enables CE1 and CE2 for power-down and device selection.

LC3564RT-15LV are ideal for systems requiring high speed, low power and battry backup or for easy mamory expansion.

The very low standby current means that backup can also be achieved using a capacitor.
