LC35256FM

Features: • Supply voltage range: 4.5 to 5.5 V• Access time at 5 V operation:LC35256FM, FT-55U: 55 ns (maximum)LC35256FM, FT-70U: 70 ns (maximum)• Standby current: 3.0 A (Ta 70°C)5.0 A (Ta 85°C)• Operating temperature: 40 to +85°C• Data retention voltage: 2.0 to 5.5 ...

product image

LC35256FM Picture
See larger image
SeekIC No. : 004391591 Detail

LC35256FM: Features: • Supply voltage range: 4.5 to 5.5 V• Access time at 5 V operation:LC35256FM, FT-55U: 55 ns (maximum)LC35256FM, FT-70U: 70 ns (maximum)• Standby current: 3.0 A (Ta 70°C)...

LC35256FM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC35256FM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage range: 4.5 to 5.5 V
• Access time at 5 V operation:
LC35256FM, FT-55U: 55 ns (maximum)
LC35256FM, FT-70U: 70 ns (maximum)
• Standby current: 3.0 A (Ta 70°C)
                              5.0 A (Ta 85°C)
• Operating temperature: 40 to +85°C
• Data retention voltage: 2.0 to 5.5 V
• All I/O levels: TTL compatible
• Input/output shared function pins, 3-state output pins
• No clock required
• Package
28-pin SOP (450 mil) plastic package: LC35256FM
28-pin TSOP (8 *13.4 mm) plastic package: LC35256FT


Pinout

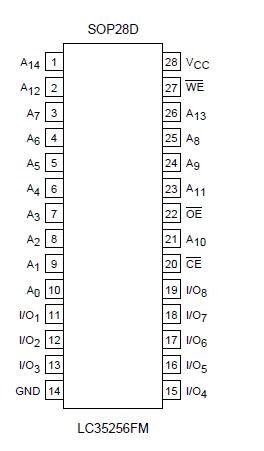

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCC max
7.0
V
Input pin voltage
VIN
0.3* to VCC + 0.3
V
I/O pin voltage
VI/O
-0.3 to VCC + 0.3
V
Operating temperature
Topr
-40 to +85
°C
Storage temperature
Tstg
-55 to +125
°C
Note: * The minimum value is 3.0 V for pulse widths under 30 ns.


Description

The LC35256FM and LC35256FT are asynchronous silicon-gate CMOS SRAMs with a 32K-word by 8-bit structure. These are full-CMOS devices with 6 transistors per memory cell, and feature low-voltage operation, a low operating current drain, and an ultralow standby current. Control inputs include OE for fast memory access and CE (chip enable) for power saving and device selection. This makes these devices optimal for systems that require low power or battery backup, and makes memory expansion easy. The ultralow standby current allows these devices to be used with capacitor backup as well.
