LC321664AM

Features: • 65536-word× 16-bit configuration• Single 5 V ±10% power supply• All input and output (I/O) TTL compatible• Supports fast page mode, read-modify-write, and bytewrite.• Supports output caching control using early write and Output Enable (OE) control.• ...

product image

LC321664AM Picture
See larger image
SeekIC No. : 004391583 Detail

LC321664AM: Features: • 65536-word× 16-bit configuration• Single 5 V ±10% power supply• All input and output (I/O) TTL compatible• Supports fast page mode, read-modify-write, and bytewri...

LC321664AM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC321664AM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 65536-word × 16-bit configuration
• Single 5 V ±10% power supply
• All input and output (I/O) TTL compatible
• Supports fast page mode, read-modify-write, and bytewrite.
• Supports output caching control using early write and Output Enable (OE) control.
• 4 ms refresh using 256 refresh cycles
• Supports RAS-only refresh, CAS-before-RAS refresh and hidden refresh.
• Packages
SOJ 40-pin (400 mil) plastic package: LC321664AJ
SOP 40-pin (525 mil) plastic package: LC321664AM
TSOP 44-pin (400 mil) plastic package: LC321664AT
• RAS access time/column address access time/CAS access time/ cycle time/power dissipation

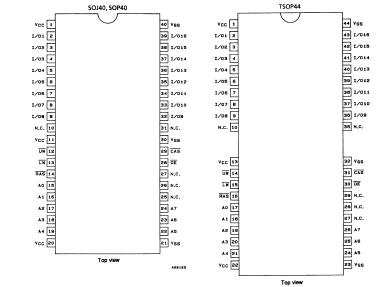

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Ratings
Unit
Note
Maximum supply voltage
VCCmax
1.0 to +7.0
V
1
Input voltage
VIN
1.0 to +7.0
V
1
Output voltage
VOUT
1.0 to +7.0
V
1
Allowable power dissipation LC321664AJ, AM
PDmax
800
mW
1
LC321664AJT
700
Output short-circuit current
IOUT
50
mA
1
Operating Temperature range
TOPR
0 to +70
°C
1
Storage temperature range
TSTG
55 to +150
°C
1


Note: 1) Stresses greater than the above listed maximum values may result in damage to the device.




Description

The LC321664AM is a CMOS dynamic RAM operating on a single 5 V power source and having a 65536-word × 16-bit configuration. Equipped with large capacity capabilities, high-speed transfer rates and low power dissipation, this series is suited for a wide variety of applications ranging from computer main memory and expansion memory to commercial equipment.

Address input utilizes a multiplexed address bus which permits it to be enclosed in compact plastic packages of SOJ 40-pin, SOP 40-pin and TSOP 44-pin. Refresh rates are within 4 ms with 256 row address (A0 to A7) selection and support RAS-only refresh, CAS-before-RAS refresh and hidden refresh settings.

There are functions such as page mode, read-modifywrite, and byte-write.
