LA5314

Features: ·Power supply for variable bias LCD matrix. (1/5 to 1/20 bias available by built-in resistances)·Five operational amplifiers to deliver 5 voltage outputs· Low current drain (1.6 mA typ)· Miniflat package for miniturizationPinoutSpecifications Parameter Symbol Conditions Ratings...

product image

LA5314 Picture
See larger image
SeekIC No. : 004390424 Detail

LA5314: Features: ·Power supply for variable bias LCD matrix. (1/5 to 1/20 bias available by built-in resistances)·Five operational amplifiers to deliver 5 voltage outputs· Low current drain (1.6 mA typ)· M...

LA5314 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5314
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Power supply for variable bias LCD matrix. (1/5 to 1/20 bias available by built-in resistances)
·Five operational amplifiers to deliver 5 voltage outputs
· Low current drain (1.6 mA typ)
· Miniflat package for miniturization




Pinout

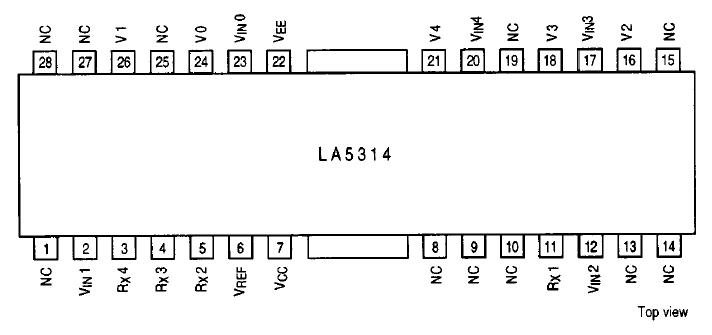

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Maximum supply voltage VCC max VCC VEE 38
V
Maximum output current lOUT max V0 to V4 *±25
mA
Allowable power dissipation
Pd max
 600
mW
Operating temperature
Topr
 20 to +75
Storage temperature
Tstg
 30 to +150

Note: 1. Continuous operation (non breakdown) is guaranteed when operated at the maximum ratings shown above.
          2. *The maximum output current is a value specified under the conditions otherwise specified separately.


Description

The LA5314 is a valiable diveded voltage generator IC for multiple drive of LCD matrix.
