LA5312V

Features: ·Power supply for variable bias LCD drive (1/5 to 1/19 bias available by internal resistors) ·Four voltage outputs generated by four operational amplifiers.·Low current drain (0.18 mA typ.)·Miniflat package for miniaturization.PinoutSpecifications Parameter Symbol Conditions Ra...

product image

LA5312V Picture
See larger image
SeekIC No. : 004390423 Detail

LA5312V: Features: ·Power supply for variable bias LCD drive (1/5 to 1/19 bias available by internal resistors) ·Four voltage outputs generated by four operational amplifiers.·Low current drain (0.18 mA typ....

LA5312V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5312V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Power supply for variable bias LCD drive (1/5 to 1/19 bias available by internal resistors)
·Four voltage outputs generated by four operational amplifiers.
·Low current drain (0.18 mA typ.)
·Miniflat package for miniaturization.




Pinout

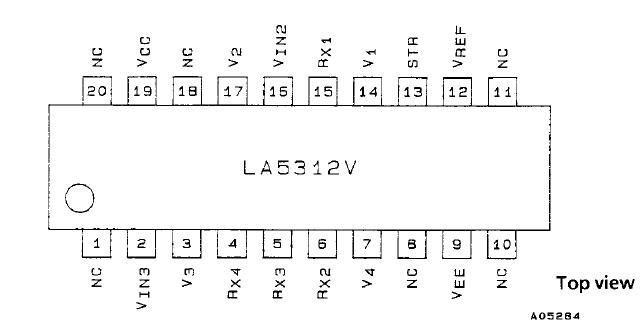

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Maximum supply voltage VCC max VCC VEE 36
V
Maximum output current lOUT max V1 V4 *Internal
mA
Allowable power dissipation
Pd max
 330
mW
Operating temperature
Topr
 20 to +75
Storage temperature
Tstg
 30 to +125

Note 1: Continuous operation (without damage) is guaranteed in the above ranges.
Note 2: *The maximum output current is the value stipulated under the test conditions on page 4.
Note 3: Output pins V1 to V4-to-VCC or GND short not exceeding 1 ms is acceptable. (|VCC VEE| < 35V)


Description

The LA5312V is a variable divided voltage generator IC for multiple drive of LCD matrix.
