L9949

Rise Time :
Fall Time :
Supply Voltage - Max :
Supply Voltage - Min :
Maximum Power Dissipation :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Product : Half-Bridge Drivers
Packaging : Tube
Supply Current : 20 mA
Package / Case : PowerSO-20
Type : Door Actuator Driver


Features:

` ONE FULL BRIDGE FOR 6A LOAD (r<sub>on</sub> = 150m)
` THREE HALF BRIDGES FOR 1.6A LOAD (r_on = 800m)
` ONE HIGHSIDE DRIVER FOR 6A LOAD (r<sub>on</sub> = 100m)
` VERY LOW CURRENT CONSUMPTION IN STANDBY MODE (I_S < 6A, typ. Tj 85°C)
` SERIAL PERIPHERAL INTERFACE (SPI) TO MICROCONTROLLER
` ALL OUTPUTS SHORT CIRCUIT PROTECTED
` CURRENT MONITOR OUTPUT FOR FULL BRIDGE AND HIGHSIDE DRIVER
` ALL OUTPUTS OVER TEMPERATURE PROTECTED
` OPEN LOAD DIAGNOSTIC FOR ALL OUTPUTS
` OVERLOAD DIAGNOSTIC FOR ALL OUTPUTS

Application

· FOR AUTOMOTIVE APPLICATIONS, E.G.
·FULL BRIDGE FOR DOOR LATCH OR
·MIRROR RETRACT, HALF BRIDGES FOR
·MIRROR AXIS CONTROL AND HIGH-SIDE
·DRIVER FOR MIRROR DEFROSTER

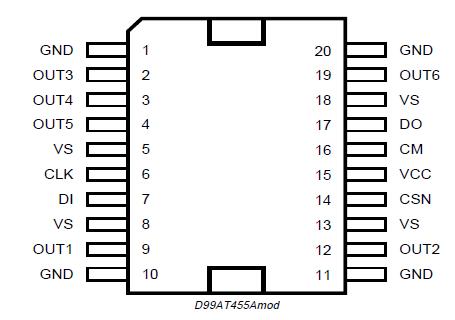

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	DC supply voltage	-0.3...28	V
	single pulse tmax < 400 ms	40	V
VCC	stabilized supply voltage, logic supply	-0.3 to 6	V
VDI VDO VCLK , VCSN	digital input / output voltage	-0.3 to VCC + 0.3	V
VCM	current monitor output	-0.3 to VCC + 0.3	V
IOUT1,OUT2,       OUT6	output current	±10	A
IOUT3,OUT5	output current	±5	A

Note: All maximum ratings are absolute ratings. Leaving the limitation of anyone of these values may cause an irreversible damage of the integrated circuit!

Description

The L9949 is a microprocessor controlled power interface for automotive applications. L9949 is realized in multipower BCD60III technology. Up to three DC mo tors and one grounded resistive load can be driven with its three half bridges, one full bridge and one highside driver power outputs. The integrated standard serial peripheral interface (SPI) controls all operation modes (forward, reverse, brake and high impedance). All diagnostic informations are available via the SPI.

Parameters:

Technical/Catalog Information	L9949
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Applications	Automotive
Current - Supply	7mA
Voltage - Supply	7 V ~ 28 V
Package / Case	PowerSO-20 Exposed Bottom Pad
Packaging	Tube
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L9949 L9949
