L9947S

Motor / Motion / Ignition Controllers & Drivers Quad Half Bridge

product image

L9947S Picture
See larger image
SeekIC No. : 00534456 Detail

L9947S: Motor / Motion / Ignition Controllers & Drivers Quad Half Bridge

L9947S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L9947S
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Motor Controller/Driver Operating Supply Voltage : 26 V
Supply Current : 5 mA Mounting Style : Through Hole
Package / Case : Multiwatt-15 Packaging : Tube

Description

Product :
Packaging : Tube
Supply Current : 5 mA
Mounting Style : Through Hole
Package / Case : Multiwatt-15
Type : Motor Controller/Driver
Operating Supply Voltage : 26 V


Features:

`LOW CONSUMPTION IN STANDBY MODE (<100A AT ROM TEMP; < 150A AT 130°C)
`TWO HALF BRIDGES FOR 3A LOAD (RDSON = 0.25 TYP; Tj = 25°C)
`TWO HALF BRIDGES FOR 0.5A LOAD (RDSON = 2.5 TYP; Tj = 25°C)
`HIGH SIDE DRIVER FOR 2.5A LOAD (RDSON = 0.45 TYP; Tj = 25°C)
`DIRECT CONTROLLED BY C (MULTIPLEX SYSTEM)
`OUTPUT HIGH/LOW LEVELDIAGNOSTIC
`OVERCURRENT SWITCH OFF AND DIAGNOSTIC
`OVERTEMPERATURE DIAGNOSTIC BEFORE SWITCH OFF
`OPEN LOAD DIAGNOSTIC




Pinout

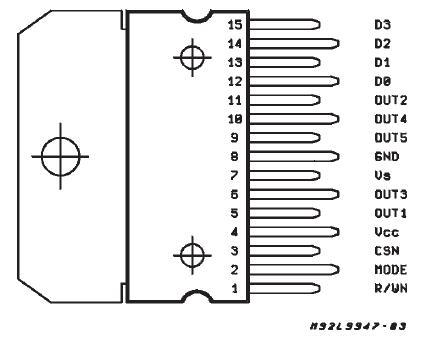

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS DC Supply Voltage 26 V
Single Pulse tmax < 400ms 40 V
IS Negative Supply Current -9 A
VCC Stabilized Supply Voltage -0.3 to 6V V
VCSN, VR/WN
VMODE		 Digital Input Voltage -0.3 to VCC+0.3 V
VD0 -D3 Digital Input/ Output Voltage -0.3 to VCC+0.3 V
IOUT1 -OUT5 Output Current Power internal limited
Tj Operating Junction Temperature -40 to 150 °C
Tj - SD Thermal Shutdown Junction Temperature min 150 °C
Tj - HYS Thermal Junction Temperature Hysteresis 20 K



Description

The L9947S is a bus controlled power interface intended for automotive applications realized in multipower BCD60II technology. Up to three DC motors and one grounded resistive load can be driven with its four half-bridge and one high-side driver power outputs. The L9947S compatible bidirectional parallel bus allows several interfaces connected on the same bus (multiplex system). The full diagnostic information is available on the bus.
