L9930PD

Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge

product image

L9930PD Picture
See larger image
SeekIC No. : 00533929 Detail

L9930PD: Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge

L9930PD Data Sheet

floor Price/Ceiling Price

US $ 1.46~2 / Piece | Get Latest Price
Part Number:
L9930PD
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~170
  • 170~250
  • 250~500
  • 500~1000
  • Unit Price
  • $2
  • $1.83
  • $1.66
  • $1.46
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Dual Full Bridge Operating Supply Voltage : 14 V
Supply Current : 15 mA Mounting Style : SMD/SMT
Package / Case : PowerSO-20 Packaging : Tube

Description

Product :
Mounting Style : SMD/SMT
Supply Current : 15 mA
Packaging : Tube
Package / Case : PowerSO-20
Type : Dual Full Bridge
Operating Supply Voltage : 14 V


Features:

`RDS ON = 2
`INTERNAL CLAMPING VOLTAGE = 32V
`INTERNAL FREE WHEELING DIODES
`PARALLEL DRIVE CAPABILITY
`RESISTIVEOR INDUCTIVE LOAD

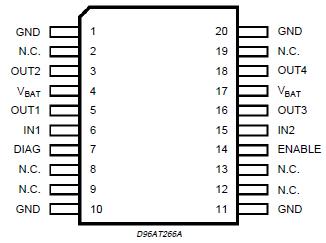

Pinout

Connection Diagram






Specifications

Symbol Parameter Value Unit
E Clamped Energy at the Switching off 6 (max) mJ
Vout DC Continuous Output Voltage 24 (max) V
Vout tr Transient Output Voltage 32 (max) V
Vbat DC Continuous Battery Voltage 8 to 24 V
Vbat tr Transient Battery Voltage 45 (max) V
Iout Reverse Output Current 2 (max) A
fin Input Frequency 500 (max) Hz
Vin Input Voltage 0.3 to +7 V
Vdiag Diagnostic Voltage 0.3 to +7 V
Ts Storage Temperature 55 to 150 °C
Tj Operating Junction Temperature 40 to 150 °C
VESD VESD (Note MIL STD 883C) 3000 V



Description

The L9930 is a dual full-bridge. The output stages are Power Mos switches.
